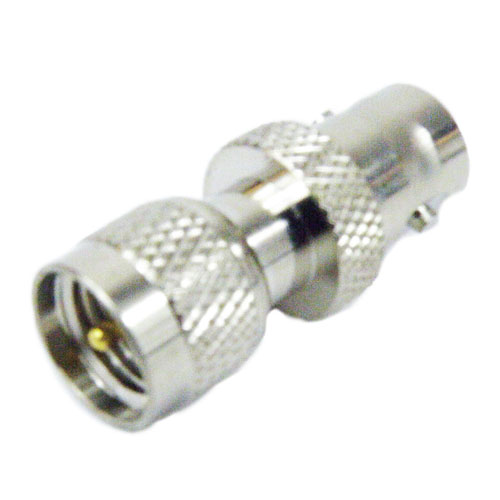

Mini UHF Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp

Name: Mini UHF Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp
Brand: Fairview Microwave, Inc.
SKU: SM2235
Availability: Discontinued

SKU: SM2235

Mini UHF Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp

Back

DISCONTINUED PRODUCT

Replaced By: FMAD1114

Product Documents

0110

SM2235
Datasheet

Key Specifications

Key Specifications.
Connector Series 1	Mini UHF
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Impedance 2	50 Ohm
Frequency, Min	DC
Frequency, Max	2.5 GHz
Adapter Body Style	Straight
Connector Mount Method 1	None
Connector Body Material 1	Brass
Connector Body Plating 1	Nickel
Connector Mount Method 2	None
Connector Body Material 2	Brass
Connector Body Plating 2	Nickel

Description

Mini UHF Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp

Mini UHF adapter SM2235 from Fairview Microwave is part of a very large selection of in-stock interconnect RF components. Our Mini UHF to BNC adapter is a coaxial adapter design with a 50 Ohm impedance. This 50 Ohm Mini UHF adapter is manufactured to precise RF adapter specifications .

Mini UHF to BNC adapter is constructed with male gender on side 1 and female on side 2. SM2235 Mini UHF male to BNC female coaxial adapter from Fairview is a straight body style. This straight Mini UHF connector adapter is an in-line RF adapter design.

Fairview male Mini UHF to female BNC adapter is part of over one million RF, microwave and millimeter wave components in stock. Our straight Mini UHF adapter is ready for same day purchase and shipping worldwide. We also stock and/or custom build Mini UHF and BNC coaxial cables that ship quickly from our facility for all your RF adapter component needs.
