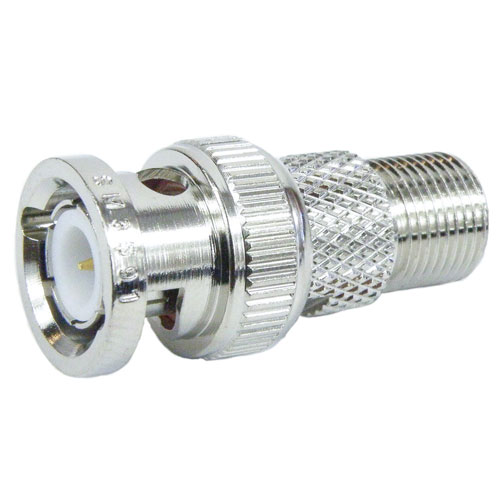

50 Ohm BNC Male (Plug) to 75 Ohm F Female (Jack) Adapter, Nickel Plated Brass Body, 1.5 VSWR

50 Ohm BNC Male (Plug) to 75 Ohm F Female (Jack) Adapter, Nickel Plated Brass Body, 1.5 VSWR

The BNC to type F standard adapter SM3591 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Bayonet none BNC to Threaded none type F RF adapte...

The BNC to type F standard adapter SM3591 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Bayonet none BNC to Threaded none type F RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.5:1.This none BNC to none type F adapter is constructed with male gender on side 1 and female gender on side 2. The none none BNC male to type F female coaxial adapter from Fairview Microwave has a straight body style. This straightBNCadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3591 adapter has a length of 1.21 inches, a width of 0.57 inches, and a weight of 0.04 lbs.Our between series connection type RF adapter operates at a maximum frequency of 1 GHz. This BNC male to type F female radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave SM3591 coaxial RF adapter operates at temperatures ranging from -40 to 60 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s BNC male to type F female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build BNC and type F coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 1 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3591 SM3591 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

BNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

F

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

75 Ohm

Frequency, Min

DC

Frequency, Max

1 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
