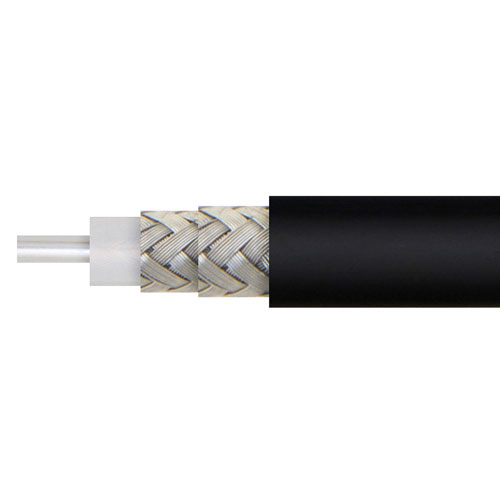

M17/84-RG223 Flexible Coax Cable PVC Jacket

M17/84-RG223 Flexible Coax Cable PVC Jacket

M17/84-RG223 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s M17/84-...

M17/84-RG223 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s M17/84-RG223-0XDS2 coaxial cable is manufactured in a flexible design and has a 50 Ohm impedance. This flexible 50 Ohm coaxial cable is constructed with a PVC jacket of 0.212-inch diameter. Fairview Microwave’s M17/84-RG223-0XDS2 flexible coaxial cable with a PVC jacket is rated for a 12.4 GHz maximum operating frequency. This 50 Ohm flexible coaxial cable is built with a shield count of 2. Our RF coaxial cable with a solid conductor of silver-plated copper can withstand the maximum power of 50 Watts at 1 GHz. Our -colored coaxial RF cable has a typical insertion loss/attenuation of dB/100ft at frequency of 50 MHz, 400 MHz, 1 GHz, 5 GHz and 12.4 GHz respectively. The M17/84-RG223 coaxial cable with PE dielectric can operate at temperatures ranging from -40 to +85 degrees C. Additional specifications for this M17/84-RG223-0XDS2 double-shielded RF coaxial cable are on our downloadable PDF datasheet above. Our -colored flexible RF cable with 50 Ohm impedance has 21 dB/100ft of attenuation at 1 GHz.M17/84-RG223 RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This M17/84-RG223 coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU M17/84-RG223-0XDS2 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Generic Name

M17/84-RG223

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

PE

Velocity of Propagation

65.9 %

Jacket Diameter

0.212 in

Jacket Material

PVC

No. of Shields

2

Attenuation at 1 Ghz.

21 dB

Power, Max at 1 Ghz.

50 Watts

Frequency, Max

12.4 GHz

Max Operating Temperature

85 deg C

Center Conductor Type

Solid

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
