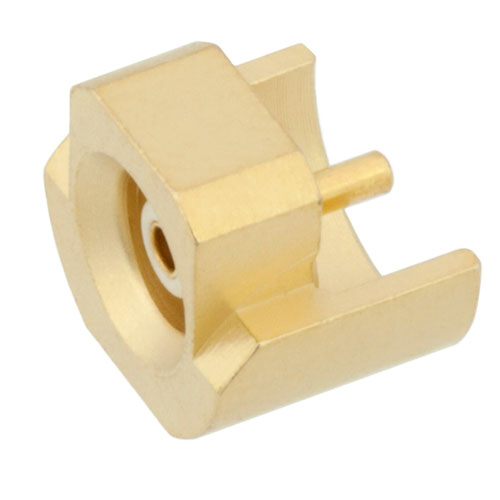

MMBX Jack (Female) Snap-On PCB Connector Edge Launch, Solder With Female (Jack) Center Contact

MMBX Jack (Female) Snap-On PCB Connector Edge Launch, Solder With Female (Jack) Center Contact

FMCN1026 MMBX jack PCB snap-on connector from Fairview Microwave has an interface type of edge launch and a 50 Ohm impedance. This MMBX jack connector uses shield attachment of solder attachment for t...

FMCN1026 MMBX jack PCB snap-on connector from Fairview Microwave has an interface type of edge launch and a 50 Ohm impedance. This MMBX jack connector uses shield attachment of solder attachment for the contact. Our jack MMBX PCB connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.MMBX jack PCB snap-on RF connector has a ptfe dielectric type and a VSWR of 1.06:1. This Fairview Microwave MMBX PCB connector has a brass body with gold plating. Our FMCN1026 MMBX connector uses brass contact and a gold plating material. This MMBX jack PCB snap-on RF connector is RoHS and with female center contact compliant, you can find this MMBX jack PCB snap-on with female center contact connector datasheet specifications above.Fairview Microwave jack MMBX connector purchases will ship the same day. Our MMBX jack edge launch connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom MMBX cable connector assemblies that will ship quickly from our location.

Expand

SKU FMCN1026 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

MMBX

Connector Gender

Jack

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

12.4 GHz

Termination Type

PCB

Interface Type 1

Edge Launch

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

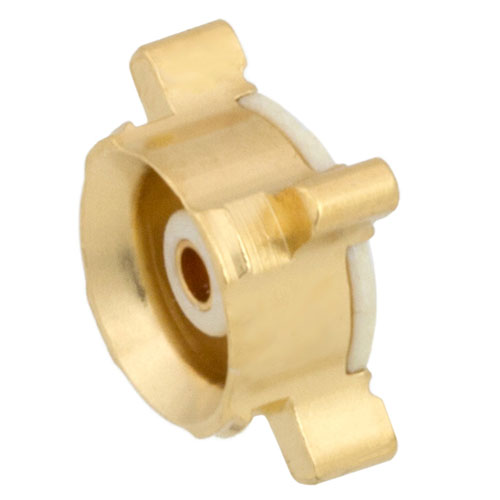

mmbx-jack-snap-on-surface-mount-pcb-connector-fmcn1027tr1 Fairview Microwave FMCN1027TR1

1,681 available

MMBX Jack (Female) Snap-On PCB Connector Surface Mount, Solder With Female (Jack) Center Contact

Compare

SKU FMCN1027TR1

Starting price $3.93

Estimated shipment Today

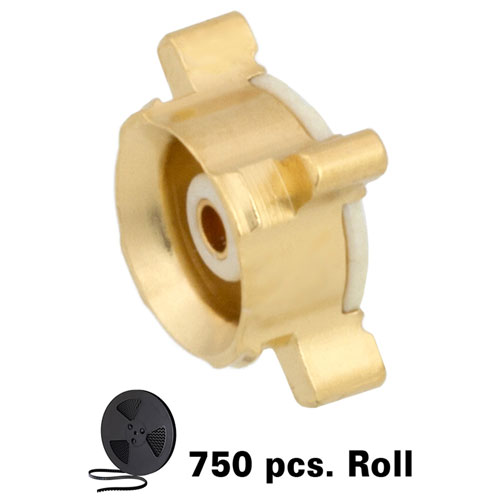

mmbx-jack-snap-on-surface-mount-pcb-connector-fmcn1027tr750 Fairview Microwave FMCN1027TR750

2 available

MMBX Jack (Female) Snap-On PCB Connector Surface Mount, Solder With Female (Jack) Center Contact, 1 Reel Contains 750 pieces

Compare

SKU FMCN1027TR750

Starting price $8,020.00

Estimated shipment Today

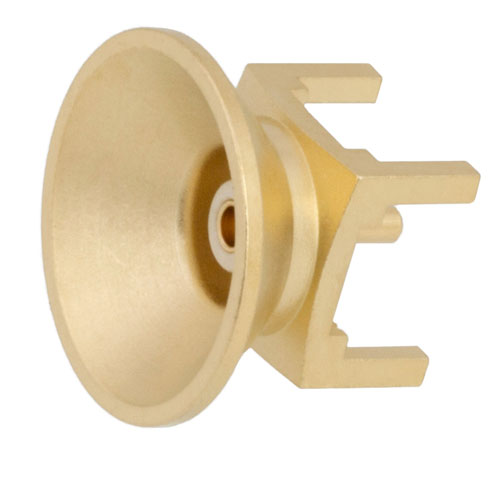

mmbx-jack-snap-on-surface-mount-pcb-connector-fmcn1030tr1 Fairview Microwave FMCN1030TR1

957 available

MMBX Jack (Female) Snap-On PCB Connector Surface Mount, Solder With Female (Jack) Center Contact and 0.382" Diameter Funnel

Compare

SKU FMCN1030TR1

Starting price $4.93

Estimated shipment Today

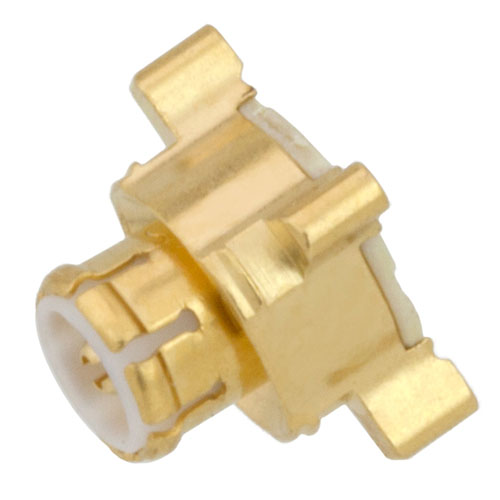

mmbx-plug-slide-on-surface-mount-pcb-connector-fmcn1024tr1 Fairview Microwave FMCN1024TR1
