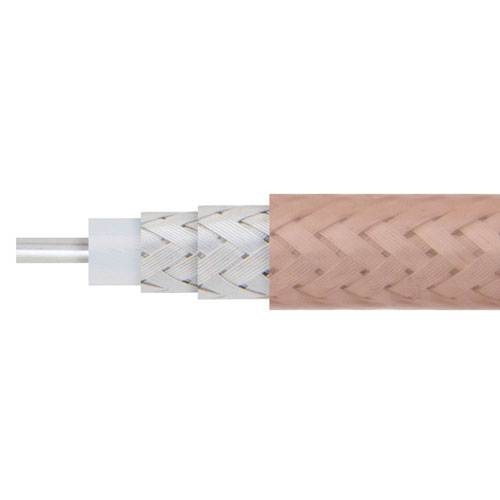

RG142 Flexible Coax Cable Tan FEP Jacket

RG142 Flexible Coax Cable Tan FEP Jacket

RG142 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG142-FT coaxi...

RG142 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG142-FT coaxial cable is manufactured in a flexible design and has a 50 Ohm impedance. This flexible 50 Ohm coaxial cable is constructed with a FEP jacket of 0.195-inch diameter. Fairview Microwave’s RG142-FT flexible coaxial cable with a FEP jacket is rated for a 8 GHz maximum operating frequency. This 50 Ohm flexible coaxial cable is built with a shield count of 2. Our RF coaxial cable has a solid conductor of copper clad steel with silver plating. Our tan-colored coaxial RF cable has a typical insertion loss/attenuation of 3.9, 7.9, 12.9, 23.9 and 32.1 dB/100ft at frequency of 100 MHz, 400 MHz, 1 GHz, 3 GHz and 5 GHz respectively. The RG142 coaxial cable with PTFE dielectric can operate at temperatures ranging from -55 to +200 degrees C. Additional specifications for this RG142-FT double-shielded RF coaxial cable are on our downloadable PDF datasheet above. Our tan-colored flexible RF cable with 50 Ohm impedance has 12.9 dB/100ft of attenuation at 1 GHz. Our twinaxial cable has a maximum operating AC voltage of 1,900 Vrms. This RF cable has a repeat minimum bend radius of 1 inch.RG142 RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This RG142 coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU RG142-FT -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

RG142

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

PTFE

Velocity of Propagation

70 %

Jacket Diameter

0.195 in

Jacket Material

FEP

No. of Shields

2

Attenuation at 1 Ghz.

12.9 dB

Frequency, Max

8 GHz

Max Operating Temperature

200 deg C

Center Conductor Type

Solid

Inner Conductor, Number of Strands

1

Minimum Bend Radius, Repeated

1 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
