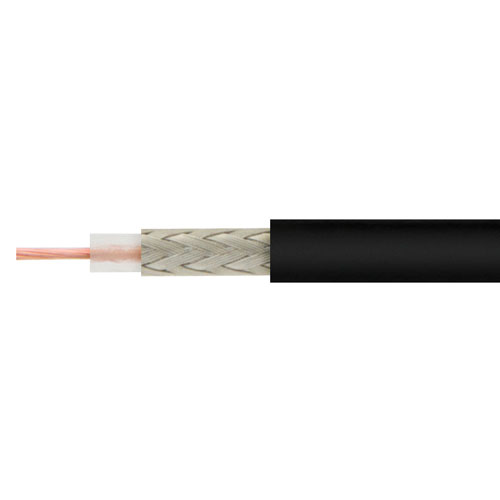

RG174 Flexible Coax Cable Black PVC Jacket

RG174 Flexible Coax Cable Black PVC Jacket

RG174 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG174-FT coaxi...

RG174 coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG174-FT coaxial cable is manufactured in a flexible design and has a 50 Ohm impedance. This flexible 50 Ohm coaxial cable is constructed with a PVC jacket of 0.11-inch diameter. Fairview Microwave’s RG174-FT flexible coaxial cable with a PVC jacket is rated for a 1 GHz maximum operating frequency. This 50 Ohm flexible coaxial cable is built with a shield count of 1. Our RF coaxial cable with a stranded conductor of copper clad steel can withstand the maximum power of 17 Watts at 1 GHz. Our black-colored coaxial RF cable has a typical insertion loss/attenuation of 8.4, 19 and 32 dB/100ft at frequency of 100 MHz, 400 MHz and 1 GHz respectively. The RG174 coaxial cable with PE dielectric can operate at temperatures ranging from -40 to +80 degrees C. Additional specifications for this RG174-FT single shielded RF coaxial cable are on our downloadable PDF datasheet above. Our black-colored flexible RF cable with 50 Ohm impedance has 32 dB/100ft of attenuation at 1 GHz. This black colored high voltage coaxial cable has a 0.078-inch shield layer of tinned copper braid.RG174 RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This RG174 coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU RG174-FT -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

RG174

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

PE

Velocity of Propagation

66 %

Jacket Diameter

0.11 in

Jacket Material

PVC

No. of Shields

1

Attenuation at 1 Ghz.

32 dB

Power, Max at 1 Ghz.

17 Watts

Frequency, Max

1 GHz

Max Operating Temperature

80 deg C

Center Conductor Type

Stranded

Inner Conductor, Number of Strands

7

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
