WR-10 Waveguide Up Converter Mixer From 75 GHz to 110 GHz, With an IF Range From DC to 18 GHz And LO Power of +13 dBm, UG-387/U Flange

WR-10 Waveguide Up Converter Mixer From 75 GHz to 110 GHz, With an IF Range From DC to 18 GHz And LO Power of +13 dBm, UG-387/U Flange

The FMMU1000 is a full waveguide band up converter mixer with an LO and RF frequency range of 75 to 110 GHz (W Band). The IF frequency range is DC to 18 GHz with a nominal LO drive level of +13 dBm. T...

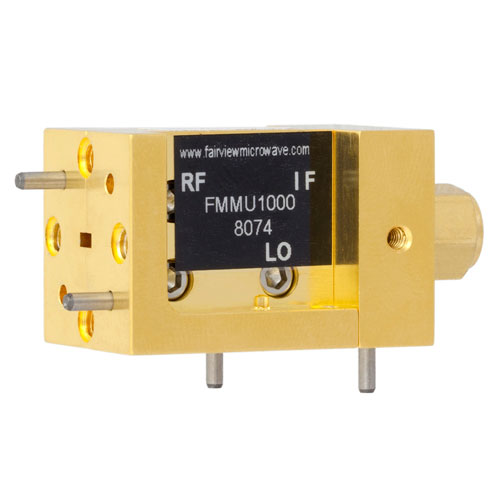

The FMMU1000 is a full waveguide band up converter mixer with an LO and RF frequency range of 75 to 110 GHz (W Band). The IF frequency range is DC to 18 GHz with a nominal LO drive level of +13 dBm. The double balanced circuit design utilizes high performance GaAs Schottky beam lead diodes. Conversion loss is 9 dB typical and flat across the entire frequency band. The gold plated compact package design uses integrated WR-10 with UG-387/U-MOD waveguide flange interfaces for the RF and LO ports and a female SMA connector for the IF port.

Expand

SKU FMMU1000 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
