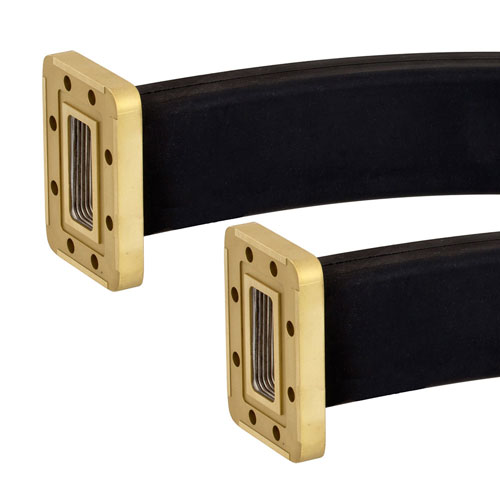

WR-137 Seamless Flexible Waveguide in 36 Inch Using CPR-137G Flange With a 5.85 GHz to 8.2 GHz Frequency Range

WR-137 Seamless Flexible Waveguide in 36 Inch Using CPR-137G Flange With a 5.85 GHz to 8.2 GHz Frequency Range

Fairview Microwave SMW137SF006-36 ships same-day worldwide and is a WR-137 seamless flexible waveguide (also known as waveguide cable). Our constantly in-stock WR-137 seamless copper waveguide cables ...

Fairview Microwave SMW137SF006-36 ships same-day worldwide and is a WR-137 seamless flexible waveguide (also known as waveguide cable). Our constantly in-stock WR-137 seamless copper waveguide cables with silver plating are 36 inches long. WR-137 flexible 36” waveguide SMW137SF006-36 by Fairview Microwave is manufactured with cpr-137g brass flanges. These high-quality 36 inch seamless flexible waveguides function up to a maximum frequency of 8.2 GHz. Fairview Microwave offers expert tech support help on these 5.85 GHz minimum to 8.2 GHz maximum silver-plated flexible waveguides with cpr-137g brass flanges.Waveguide components like SMW137SF006-36 WR-137 8.2 GHz 36 in. cables with high-quality neoprene sleeves, have been provided by Fairview Microwave since 1992 (Sun Moon Electronics originally). Fairview Microwave 5.85 GHz minimum frequency cpr-137g brass flange 36-inch seamless waveguide cables have a one-time maximum offset rotation (or MOR) of 30° degrees/ft. Our 5.85 GHz to 8.2 GHz frequency range flexible waveguide with 30° degrees/ft MOR displays a 0.18 dB typical insertion loss, viewable here on SMW137SF006-36 PDF datasheet specification download with dimensions and CAD drawing specs on this product page.Seamless 0.18 dB loss flexible waveguide WR-137 with 36 inches of length cpr-137g brass flanges can be bent to E and H planes without impairing the voltage standing wave ratio (or VSWR) of 1.07:1. The one-time E-plane minimum bend radius (or MBR) for Fairview Microwave’s SMW137SF006-36 30° degrees/ft MOR copper waveguide cable is 1.18 inches with 1.97 inches H-plane MBR. Fairview Microwave WR-137 cpr-137g flange silver-plated flexible waveguide with 0.18 dB insertion loss and 1.07:1 VSWR provides industry-leading vibration isolation with added protection and support from its highly-advanced neoprene sleeve. This WR-137 seamless flexible copper 36” long waveguide cable has a maximum input power of 5 kWatts and maximum peak power of 500 kWatts.In business since 1992, Fairview Microwave supplies these rapid-shipping 36 in. 30° degrees/ft seamless waveguide cables that bend easily to fix misalignments. Our knowledgeable sales team aids in procuring SMW137SF006-36 WR-137 seamless silver-plated flexible waveguides using cpr-137g brass flanges online or by phone. Fairview Microwave offers this WR-137 36 in. copper seamless flexible waveguide with cpr-137g flanges covering 5.85 GHz to 8.2 GHz with SMW137SF006-36 PDF datasheet specifications with CAD drawing dimension specs download. These 0.18 dB insertion loss 8.2 GHz max frequency waveguide cables with 1.07:1 VSWR are great for one-stop shopping. With same business day shipping worldwide from our ISO-registered facility, you should name Fairview Microwave as your primary source for flexible waveguides.

Expand

SKU SMW137SF006-36 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size 1

WR-137

Flange Type 1

None

Waveguide Size 2

WR-137

Flange Type 2

None

Length

36

Frequency, Min

5.85 GHz

Frequency, Max

8.2 GHz

Max Power (CW)

5,000

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
