WR-42 Waveguide Gunn Oscillator at a 24.125 GHz Center Frequency With 1,000 MHz Tuning Range And -98 dBc/Hz Phase Noise, K Band, UG-595/U

WR-42 Waveguide Gunn Oscillator at a 24.125 GHz Center Frequency With 1,000 MHz Tuning Range And -98 dBc/Hz Phase Noise, K Band, UG-595/U

Name: WR-42 Waveguide Gunn Oscillator at a 24.125 GHz Center Frequency With 1,000 MHz Tuning Range And -98 dBc/Hz Phase Noise, K Band, UG-595/U
Brand: Fairview Microwave, Inc.
SKU: FMWGN1001
Availability: OutOfStock

FMWGN1001 is a Waveguide Gunn Oscillator with a Center Frequency of 24.125 GHz and a Tuning Range of +/- 1.0 GHz. The unit operates in the K Band. The unit has a Phase Noise @ 100kHz Offset of -95 d...

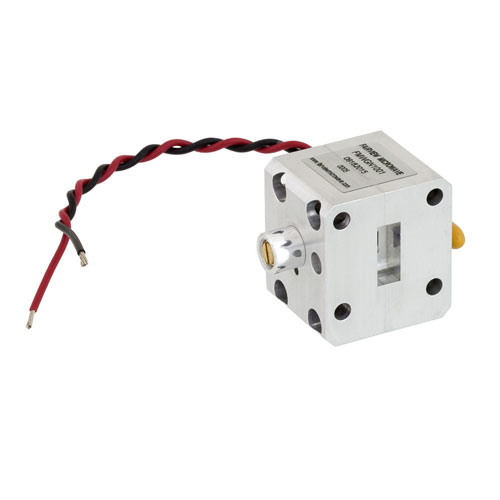

FMWGN1001 is a Waveguide Gunn Oscillator with a Center Frequency of 24.125 GHz and a Tuning Range of +/- 1.0 GHz. The unit operates in the K Band. The unit has a Phase Noise @ 100kHz Offset of -95 dBc/Hz typ and Frequency Stability of -0.4 MHz/°C max. The Gunn Oscillator has an Output Power of 10 dBm min and Power Stability of -0.04 dB/°C max. The Waveguide Gunn Oscillator uses a Bias Voltage of 5.0 Volts and a Bias Current of 200 mA and has a Waveguide Size of WR-42 and a Flange of UG-595/U.

Expand

SKU FMWGN1001 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Waveguide Size

WR-42

Center Frequency

24.125 GHz

Design

Mechanically Tuned

Flange Size Equivalent

UG-595/U

Flange Type

Square Cover

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
