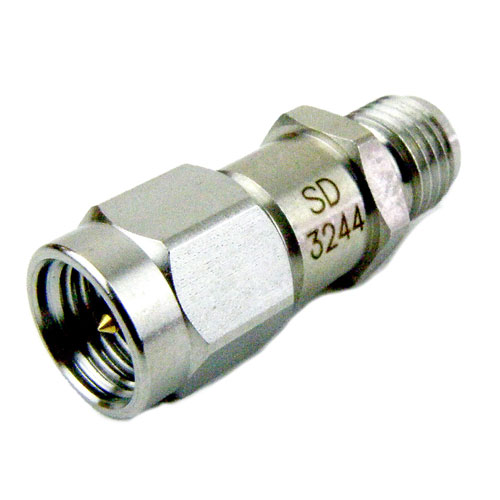

Inner DC Block From 10 MHz to 18 GHz With SMA Connectors

Inner DC Block From 10 MHz to 18 GHz With SMA Connectors

Coaxial DC block SD3244 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with...

Coaxial DC block SD3244 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with a SMA connector in and SMA connector out. Our SMA to SMA DC block is male to female genders in and out.Fairview Microwave SMA DC block has a 50 Ohm impedance and an inner design. Our 50 Ohm SMA inner DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 18 GHz. SD3244 SMA inner DC block has a maximum insertion loss of 0.5 dB and a maximum VSWR of 1.35:1.Inner DC block specs for this Fairview direct current blocking component can be found on its DC block datasheet PDF specifications above. Inner SMA DC block is one radio frequency component of more than one million microwave and millimeter wave RF parts in stock at Fairview and is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency DC blocks that ship same-day from our warehouse in the as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU SD3244 SD3244 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: SD3244A

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Block Type

Inner

Impedance

50 Ohm

Connector In Series

SMA

Connector In Gender

Male

Connector Out Series

SMA

Connector Out Gender

Female

Minimum Frequency

10 MHz

Maximum Frequency

18 GHz

Maximum VSWR

1.35:1

Maximum Voltage

200 Volts

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

Not Available

ECCN

EAR99
