Directional Log Periodic Antenna, 600-3,800 MHz, 11 dBi Max Gain N Type Female, ABS Radome, 2 Ports, Vertical and Horizontal

Directional Log Periodic Antenna, 600-3,800 MHz, 11 dBi Max Gain N Type Female, ABS Radome, 2 Ports, Vertical and Horizontal

Fairview Microwave’s FMANLP1004 is a directional 5G / LTE outdoor log periodic vertical and horizontal antenna that ships same day from our facility certified to ISO 9001:2015. Use our single band 1 6...

Fairview Microwave’s FMANLP1004 is a directional 5G / LTE outdoor log periodic vertical and horizontal antenna that ships same day from our facility certified to ISO 9001:2015. Use our single band 1 600 MHz to 960 MHz, 7 dBi gain, 2.5:1 VSWR max at F1; band 2 1.71 GHz to 2.7 GHz, 9 dBi gain, 2.5:1 VSWR max at F2, standard directional antenna for a wide array of telecommunication applications where wide coverage is desired. Use a single multi-band design standard directional log periodic vertical and horizontal antenna for a wide array of telecommunication applications where wide coverage instead of using separate antennas. Ideal for LPWAN/IoT/M2M, CDMA, LTE, 5G applications including NB-IOT, LTE-M, and LoRA, our 2 Port 600 MHz-3.8 GHz N Type female Connector, log periodic antenna has a max gain of 11dBi.With an impedance of 50 Ohms and max input power of 50 Watts, the FMANLP1004 standard log periodic vertical and horizontal antenna is well suited for long distance directional communication. The model FMANLP1004 2 Port standard designed for high reliability in extreme weather conditions can withstand winds up to 150 MPH and temperatures between -40° - 70° deg C. Contact Fairview Microwave's 5G / LTE outdoor antenna experts for any assistance on 600 MHz-3.8 GHz, dBi N Type female directional standard connector antennas. Built to boost cellular LTE signals the band standard directional antenna has a max 11dBi gain and standard polarity threaded connector, N type female connector.Fairview’s FMANLP1004 has a Radome made of abs in wh color and comes from an ISO 9001:2015 certified facility, that uses a rigorous Quality Management System (QMS). The 2 Port standard directional 600 MHz to 3.8 GHz band antenna eliminates the need to purchase different antennas for each frequency. Suited for all weather operation, our commercial grade, vertical and horizontal log periodic antenna made with heavy duty steel mast mounting brackets comes with a tough lightweight abs radome. The included bracket, hardware along with threaded female connector and abs radome, makes installation effortless.Fairview's type N connectorized FMANLP1004 antenna with 50 Watts max input power comes with a F1 HPBW Vertical Elevation of 65° Degrees, F2 HPBW Vertical Elevation of 50° Degrees and a HPBW Horizontal Azimuth of 85° Degrees. Part FMANLP1004 operating on the 600 MHz to 3.8 GHz cellular band, has a mounting pole diameter of 1.57in - 1.97in. This rugged, Type N connector has an overall length of 18.2in, width of 10.2in, and weighs 3lbs. Use our on-line ordering system to purchase your 2 Port FMANLP1004 standard directional vertical and horizontal antenna 24 hours a day with same-day shipping and no MOQs (minimum order quantities).

Expand

SKU FMANLP1004 FMANLP1004 -0

QTY available 3

Price $449.99

Quantity Price

1-24$449.99

25-49$427.49

50-99$404.99

100-249$386.99

250-499$368.99

500+$368.99Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Antenna Type

Log Periodic

Design Type

Standard

Direction Type

Directional

Band Type

Multi

VSWR, Typical Input

2:1

Polarization

Vertical and Horizontal

Number of Ports

2

Minimum Frequency

600 MHz

Maximum Frequency

3.8 GHz

Connector Series

N

Connector Gender

Female

Impedance

50 Ohm Ohm

Max Input Power

50

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

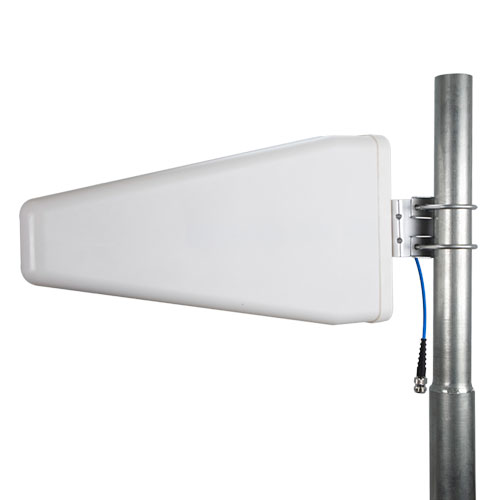

multi-band-antenna-0-dbi-n-female-fmanlp1012 Fairview Microwave FMANLP1012

17 available

Directional Log Periodic Antenna, 698-4,200 MHz, 11 dBi Max Gain N Type Female, ABS Radome, 2 Ports, Vertical

Compare

SKU FMANLP1012

Starting price $207.99

Estimated shipment Today

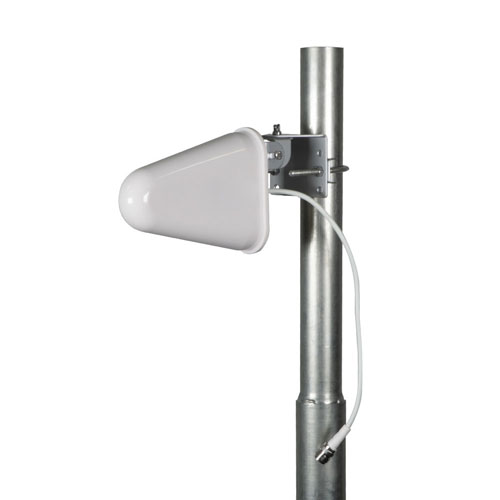

log-periodic-multi-band-antenna-0-dbi-n-female-fmanlp1009 Fairview Microwave FMANLP1009

19 available

Directional Log Periodic Antenna, 2,300-2,500 MHz, 10 dBi Max Gain N Type Female, ABS Radome, Vertical

Compare

SKU FMANLP1009

Starting price $10.39

Estimated shipment Today

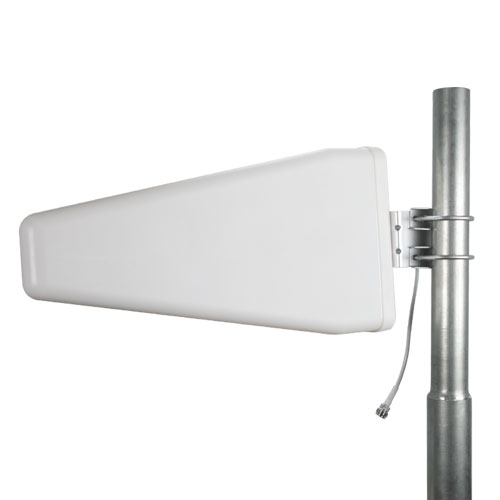

multi-band-antenna-0-dbi-n-female-fmanlp1013 Fairview Microwave FMANLP1013

14 available

Directional Log Periodic Antenna, 698-4,200 MHz, 11 dBi Max Gain N Type Female, ABS Radome, Vertical

Compare

SKU FMANLP1013

Starting price $125.99

Estimated shipment Today

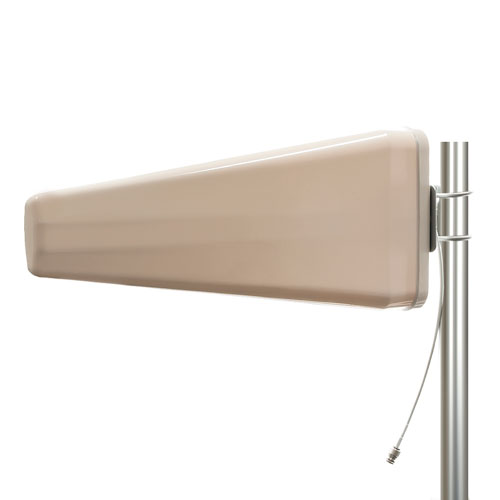

dbi-multiband-log-periodic-antenna-617-2700-mhz-n-type-connector-fmanlp1003 Fairview Microwave FMANLP1003

17 available

Directional Log Periodic Antenna, 617-2,700 MHz, 11 dBi Max Gain N Type Female, ABS Radome, Vertical

Compare

SKU FMANLP1003

Starting price $143.99

Estimated shipment Today
