380 MHz - 470 MHz 1 Folded Dipole antenna, 4.6 dbi gain, 1/4 Wave Offset pattern, V-pol, Type N Female Connector

Due to this products weight or size, it will be shipped via Freight. Freight

380 MHz - 470 MHz 1 Folded Dipole antenna, 4.6 dbi gain, 1/4 Wave Offset pattern, V-pol, Type N Female Connector

The exposed dipole single element antenna FMANED1005 from Fairview Microwave is a high-performance RF component operates from 380 to 470 MHz for UHF applications like boosting radar, GPR/WPR, FM Radio...

The exposed dipole single element antenna FMANED1005 from Fairview Microwave is a high-performance RF component operates from 380 to 470 MHz for UHF applications like boosting radar, GPR/WPR, FM Radio, TV broadcasts, public safety, LMR / PMR and aviation where directivity and coverage are very important. The FMANED1005 from Fairview Microwave Antennas is a high-performance, single element exposed folded dipole antenna specifically designed to aesthetically pleasing design. The Fairview Microwave Antennas FMANED1005 has 4.6 dBi / 2.45 dBd of high gain which is ideal for these applications.The FMANED1005 exposed dipole antennas are robust, outdoor, weatherproof, and high velocity wind sustainable antennas made up of high-grade aluminum alloys for longevity and resistant to corrosion. These dipole antennas are side mounted ¼ wave spacing from the mast, has a pigtail terminated with 1 Type N female connector. This premium quality 1-bay dipole antenna has offset pattern with 100W maximum power handling capability. The folded exposed dipole FMANED1005 has 68 vertical beamwidth and 210 horizontal beamwidth. This antenna has Vertical polarization and the included mounting kit allows for very easy and quick time installations with less effort. These exposed dipoles are already tuned to be Quarter wavelength away from the mast and do not require any further field adjustments.The central support mast is precisely designed for easy dipole attachments which fit tightly for error free and quick installations and ease for transportation. FM’s 380 to 470 MHz single element Quarter wave exposed folded dipole FMANED1005 antennas with 4.6 dBi/ 2.45 dBd max gain for UHF communication applications. This Quarter wave folded exposed dipole antenna with N Female Type connector is in stock and ready to ship the same day. Contact our knowledgeable and friendly technical support and sales staff for your answers on antennas or other Fairview Microwave products.

Expand

SKU FMANED1005 FMANED1005 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design Type

Dipole

Direction Type

Directional

Band Type

Single

Polarization

Vertical

Number of Ports

1

Minimum Frequency

380 MHz

Maximum Frequency

470 MHz

Connector Series

N

Connector Gender

Female

Nominal Gain

4.6 dBi

Max Input Power

100

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

7.6-dbi-antenna-380-470-mhz-n-type-connector-fmaned1007 Fairview Microwave FMANED1007

3 available

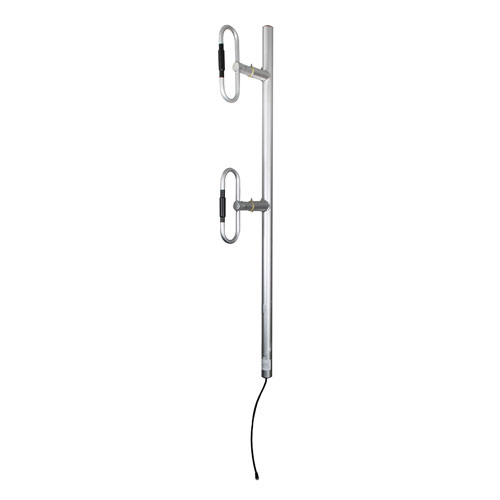

380 MHz - 470 MHz 2 Folded Dipole antenna, 7.6 dBi gain, 1/4 Wave Offset pattern, V-pol, Type N Female Connector

Compare

SKU FMANED1007

Starting price $1,160.00

Estimated shipment Today

4.1-antenna-380-470-mhz-n-type-connector-fmaned1004 Fairview Microwave FMANED1004

4 available

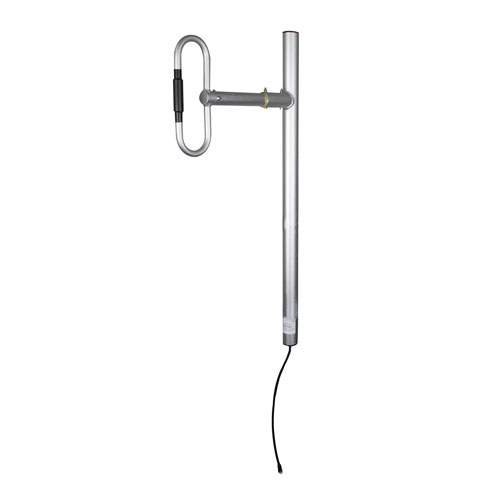

380 MHz - 470 MHz 1 Folded Dipole antenna, 4 dbi gain, 1/2 Wave Bidirectional pattern, V-pol, Type N Female Connector

Compare

SKU FMANED1004

Starting price $630.00

Estimated shipment Today

4.6-dbi-antenna-406-512-mhz-n-type-connector-fmaned1009 Fairview Microwave FMANED1009

3 available

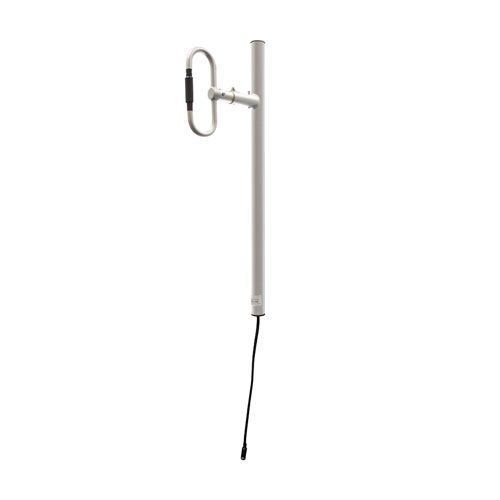

406 MHz - 512 MHz 1 Folded Dipole antenna, 4.6 dBi gain, 1/4 Wave Offset pattern, V-pol, Type N Female Connector

Compare

SKU FMANED1009

Starting price $630.00

Estimated shipment Today

7-dbi-antenna-380-470-mhz-n-type-connector-fmaned1006 Fairview Microwave FMANED1006

3 available

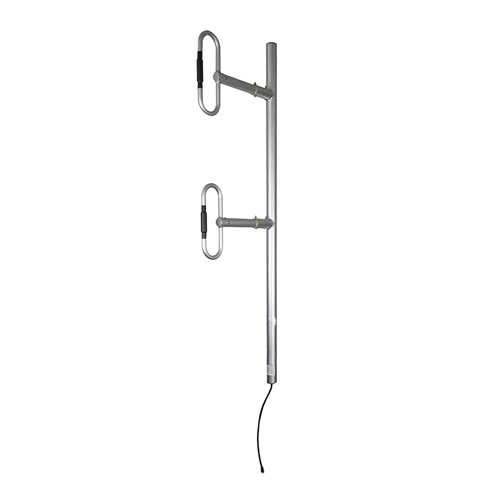

380 MHz - 470 MHz 2 Folded Dipole antenna, 7 dBi gain, 1/2 Wave Bidirectional pattern, V-pol, Type N Female Connector

Compare

SKU FMANED1006

Starting price $1,160.00

Estimated shipment Today
