2400-2500 MHz, 2 dBi, Stamped Metal AP/Router Embedded Antenna

2400-2500 MHz, 2 dBi, Stamped Metal AP/Router Embedded Antenna

Fairview Microwave’s FMSMA1004 is a linear polarized antenna that ships same day from our ISO 9001:2015 certified facility. The FMSMA1004 is a single-band antenna with a maximum frequency of 250...

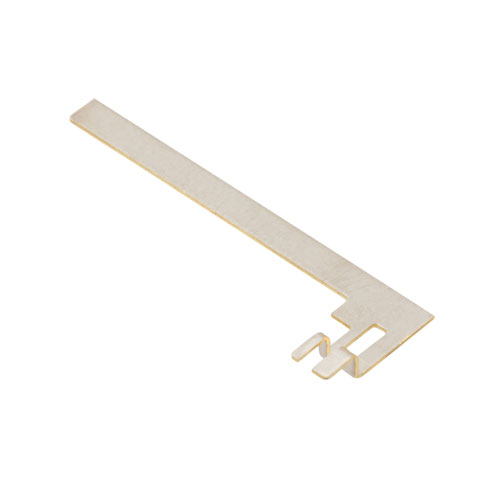

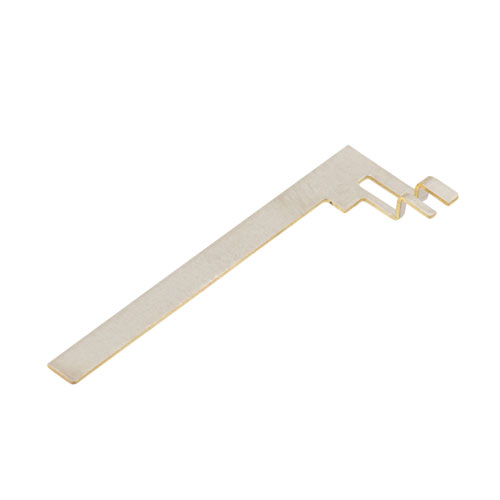

Fairview Microwave’s FMSMA1004 is a linear polarized antenna that ships same day from our ISO 9001:2015 certified facility. The FMSMA1004 is a single-band antenna with a maximum frequency of 2500 MHz and a minimum frequency of 2400 MHz. This stamped metal antenna has a nominal gain of 2 dBi. Fairview Microwave’s stamped metal antenna with a 2400 to 2500 MHz frequency range has a maximum input VSWR of 2. The FMSMA1004 antenna has an overall length of 0.94 inches and a width of 0.31 inches. This omni directional antenna has an impedance of 50 Ohms.Additional dimensions and specifications for these stamped metal antennas are on our downloadable PDF datasheet above. Our technical experts are on hand to assist you with any inquiries. Use our online ordering system to purchase your FMSMA1004 antenna 24 hours a day with same-day shipping and no MOQs (minimum order quantities).

Expand

SKU FMSMA1004 FMSMA1004 -0

QTY available 500

Price $0.74

Quantity Price

1-24$0.74

25-49$0.70

50-99$0.67

100-249$0.64

250-499$0.61

500+$0.61Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Antenna Type

Stamped Metal

Design Type

Standard

Direction Type

Omni Directional

Band Type

single

Polarization

Linear

Minimum Frequency

2.4 GHz

Maximum Frequency

2.5 GHz

Impedance

50 Ohm Ohm

Nominal Gain

2 dBi

Max Input Power

1

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

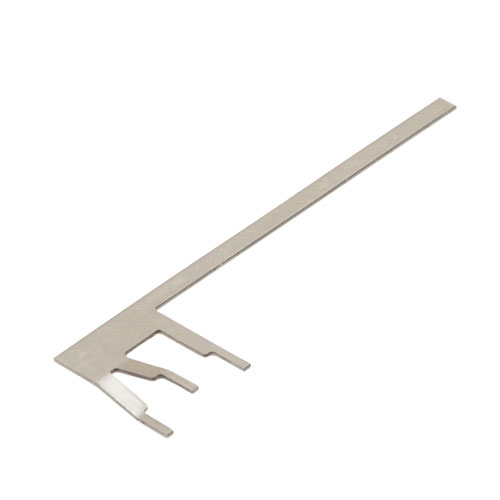

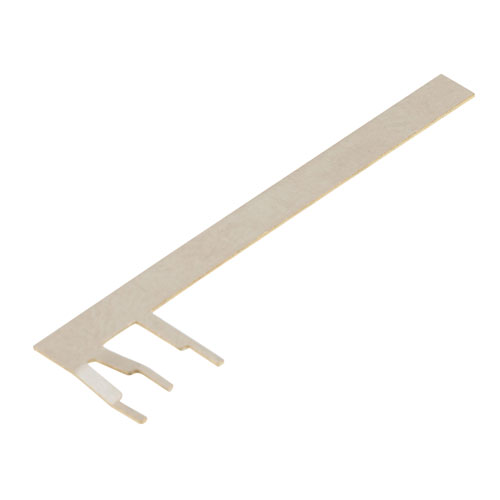

2-stamped-metal-antenna-2400-2500-mhz-4694r-br-connector-fmsma1004-50pk Fairview Microwave FMSMA1004-50PK
