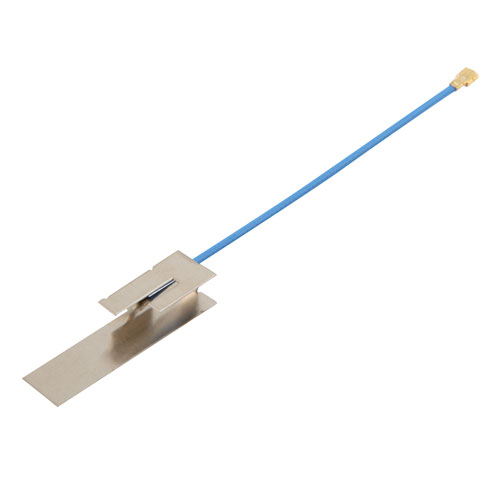

5150-5825 MHz, 5.1 dBi, Stamped Metal AP/Router Embedded Antenna With IPEX Connector

5150-5825 MHz, 5.1 dBi, Stamped Metal AP/Router Embedded Antenna With IPEX Connector

Fairview Microwave’s FMSMA1015 is a linear polarized antenna that ships same day from our ISO 9001:2015 certified facility. The FMSMA1015 is a single-band antenna with a maximum frequency of 582...

Fairview Microwave’s FMSMA1015 is a linear polarized antenna that ships same day from our ISO 9001:2015 certified facility. The FMSMA1015 is a single-band antenna with a maximum frequency of 5825 MHz and a minimum frequency of 5150 MHz. This stamped metal antenna with an IPEX connector has a nominal gain of 5.1 dBi. Fairview Microwave’s stamped metal antenna with a 5150 to 5825 MHz frequency range has a maximum input VSWR of 2. The FMSMA1015 antenna has an overall length of 1.18 inches and a width of 0.39 inches. This omni directional antenna has an impedance of 50 Ohms.Additional dimensions and specifications for these stamped metal antennas with an IPEX connector are on our downloadable PDF datasheet above. Our technical experts are on hand to assist you with any inquiries. Use our online ordering system to purchase your FMSMA1015 antenna 24 hours a day with same-day shipping and no MOQs (minimum order quantities).

Expand

SKU FMSMA1015 FMSMA1015 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Antenna Type

Stamped Metal

Design Type

Standard

Direction Type

Omni Directional

Band Type

single

Polarization

Linear

Number of Ports

1

Minimum Frequency

5.15 GHz

Maximum Frequency

5.83 GHz

Connector Series

IPEX

Impedance

50 Ohm Ohm

Nominal Gain

5.1 dBi

Max Input Power

1

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99
