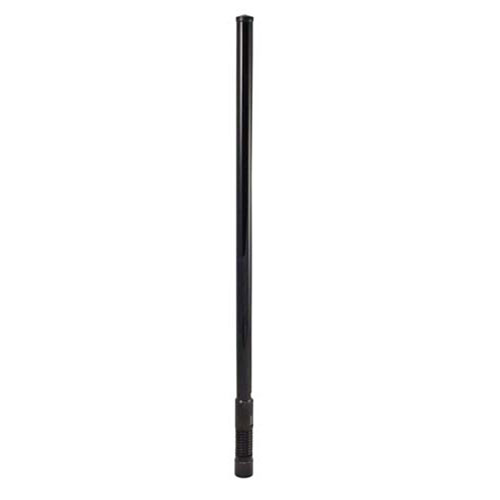

7.4 dBi Omni Antenna 2.4-2.5 GHz, N Type Male Fiberglass Radome, 2:1 Max VSWR

7.4 dBi Omni Antenna 2.4-2.5 GHz, N Type Male Fiberglass Radome, 2:1 Max VSWR

Fairview Microwave’s FM51OM1025 is an omni directional 5G / LTE outdoor omni vertical antenna that ships same day from our facility certified to ISO 9001:2015. The part number FM51OM1025 with a band t...

Fairview Microwave’s FM51OM1025 is an omni directional 5G / LTE outdoor omni vertical antenna that ships same day from our facility certified to ISO 9001:2015. The part number FM51OM1025 with a band type and 7.4dBi gain nominal is a omni directional standard series antenna. Ideal for LPWAN/IoT/M2M, CDMA, LTE, 5G applications including NB-IOT, LTE-M, and LoRA, our 2.4 GHz-2.5 GHz N Type male Connector, omni antenna has a gain of 7.4dBi. With an impedance of 50 Ohms and max input power of 50 Watts, the FM51OM1025 standard omni vertical antenna is well suited for point to multipoint use in large open areas such as base station installations or large campuses. The model FM51OM1025 standard designed for high reliability in extreme weather conditions can withstand temperatures between - deg C. Contact Fairview Microwave's 5G / LTE outdoor antenna experts for any assistance on 2.4 GHz-2.5 GHz, 7.4dBi N Type male omni directional standard connector antennas. Built to broadcast cellular LTE signals the band standard omni directional antenna has a gain nominal of 7.4dBi gain and standard polarity threaded connector, N type male connector.Fairview's FM51OM1025 has a Radome made of fiberglass in bk color and comes from a facility certified to ISO 9001:2015, that uses a rigorous Quality Management System (QMS). Suited for all weather operation, our commercial grade, vertical omni antenna made with heavy duty steel mast mounting brackets comes with a tough lightweight fiberglass radome. The included bracket, hardware along with threaded male connector and fiberglass radome, makes installation effortless. This rugged, Type N connector has an overall length of 18.4in,a width of 0.75in, and weighs 0.68lbs. Use our on-line ordering system to purchase your FM51OM1025 standard omni directional vertical antenna 24 hours a day with same-day shipping and no MOQs (minimum order quantities).

Expand

SKU FM51OM1025 FM51OM1025 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Antenna Type

Omni

Design Type

Standard

Direction Type

Omni Directional

Band Type

Single

Polarization

Vertical

Number of Ports

1

Minimum Frequency

2.4 GHz

Maximum Frequency

2.5 GHz

Connector Series

N

Connector Gender

Male

Impedance

50 Ohm Ohm

Nominal Gain

7.4 dBi

Max Input Power

50

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
