Engineering Grade 1.85mm Female (Jack) to 1.85mm Female (Jack) Adapter with Stainless Steel Body

Engineering Grade 1.85mm Female (Jack) to 1.85mm Female (Jack) Adapter with Stainless Steel Body

Name: Engineering Grade 1.85mm Female (Jack) to 1.85mm Female (Jack) Adapter with Stainless Steel Body
Brand: Fairview Microwave, Inc.
SKU: FMAD1604
Price: 197.99 USD
Availability: InStock

The engineering grade 1.85mm adapter FMAD1604 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none 1.85mm to Threaded none 1.85mm RF ada...

The engineering grade 1.85mm adapter FMAD1604 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none 1.85mm to Threaded none 1.85mm RF adapter comes with a 50 Ohm impedance. This coaxial adapter is manufactured to precise RF component specifications and has a typical VSWR of 1.35:1 Our engineering grade RF adapter has a dielectric withstanding voltage of 500 Vrms.This none 1.85mm to none 1.85mm adapter is constructed with female gender on side 1 and female gender on side 2. The none 1.85mm female to 1.85mm female coaxial adapter from Fairview Microwave has a straight body style. This straight1.85mmadapter is an in-line RF adapter in a engineering grade design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The between series adapter has a maximum insertion loss of 0.418 dB. The FMAD1604 adapter has a length of 0.89 inches, a width of 0.31 inches, and a weight of 0.02 lbs.Our between series connection type RF adapter operates at a maximum frequency of 70 GHz. This 1.85mm female to 1.85mm female radio frequency adapter has a stainless steel connector body with passivated stainless steel body plating. The Fairview Microwave FMAD1604 coaxial RF adapter operates at temperatures ranging from -55 to 105 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 1.85mm female to 1.85mm female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 1.85mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 70 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1604 FMAD1604 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

1.85mm

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

1.85mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

70 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Stainless Steel

Connector Body Plating 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Stainless Steel

Connector Body Plating 2

Passivated Stainless Steel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

1-85mm-male-to-1-85mm-female-adapter-mil-std-202-method-206-stainless-steel-engineering-grade-fmad1603 Fairview Microwave FMAD1603

27 available

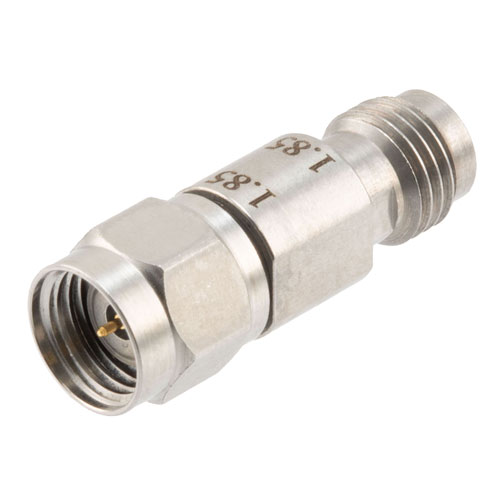

Engineering Grade 1.85mm Male (Plug) to 1.85mm Female (Jack) Adapter with Stainless Steel Body

Compare

SKU FMAD1603

Starting price $199.99

Estimated shipment Tomorrow

1-85mm-male-to-1-85mm-male-adapter-mil-std-202-method-206-stainless-steel-engineering-grade-fmad1602 Fairview Microwave FMAD1602

undefined

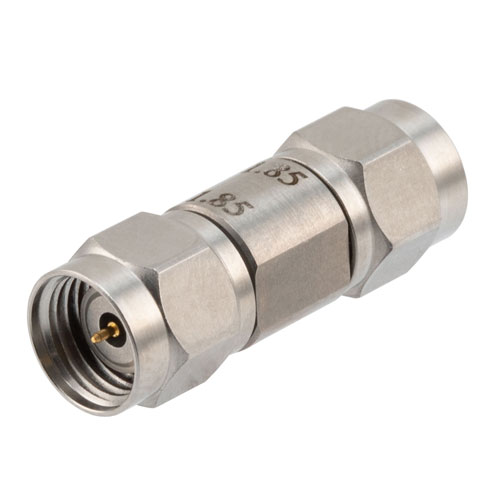

Engineering Grade 1.85mm Male (Plug) to 1.85mm Male (Plug) Adapter with Stainless Steel Body

Compare

SKU FMAD1602

Starting price $183.99

Estimated shipment Call Us

20 available

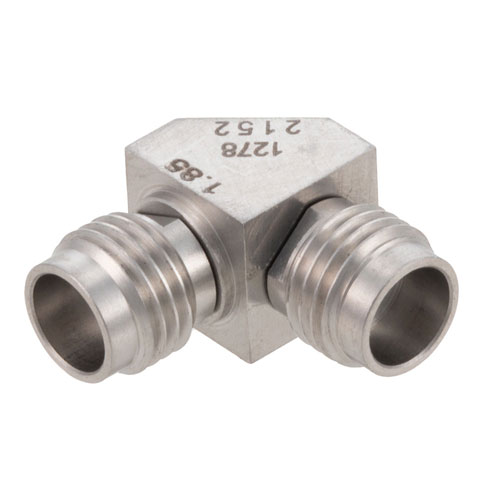

RA 1.85mm Female to 1.85mm Female Adapter with Passivated Stainless Steel Body

Compare

SKU FMAD1278

Starting price $890.00

Estimated shipment Tomorrow

16 available

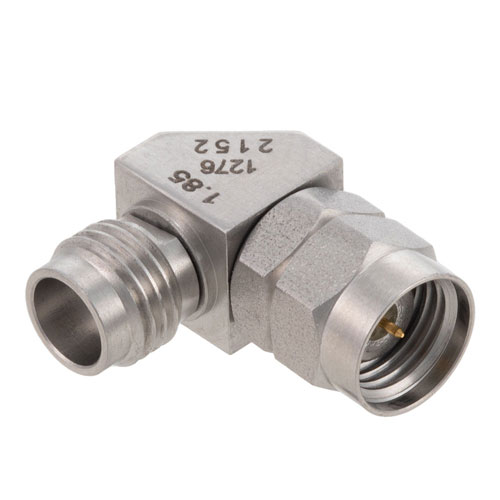

RA 1.85mm Male to 1.85mm Female Adapter with Passivated Stainless Steel Body

Compare

SKU FMAD1276

Starting price $915.00

Estimated shipment Tomorrow
