1.85mm Male (Plug) to 1.85mm Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.3 VSWR

1.85mm Male (Plug) to 1.85mm Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.3 VSWR

The standard 1.85mm adapter SM3937 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 1.85mm to Threaded none 1.85mm RF adapter c...

The standard 1.85mm adapter SM3937 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 1.85mm to Threaded none 1.85mm RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.3:1.This none 1.85mm to none 1.85mm adapter is constructed with male gender on side 1 and female gender on side 2. The none none 1.85mm male to 1.85mm female coaxial adapter from Fairview Microwave has a straight body style. This straight1.85mmadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3937 adapter has a length of 0.82 inches, a width of 0 inches, and a weight of 0.01 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 65 GHz. This 1.85mm male to 1.85mm female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave SM3937 coaxial RF adapter operates at temperatures ranging from -55 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 1.85mm male to 1.85mm female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 1.85mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 65 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3937 SM3937 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

1.85mm

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

1.85mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

65 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

1.85mm-male-1.85mm-male-adapter-sm3938 Fairview Microwave SM3938

29 available

1.85mm Male (Plug) to 1.85mm Male (Plug) Adapter, Passivated Stainless Steel Body, High Temp, 1.35 VSWR

Compare

SKU SM3938

Starting price $217.50

Estimated shipment Tomorrow

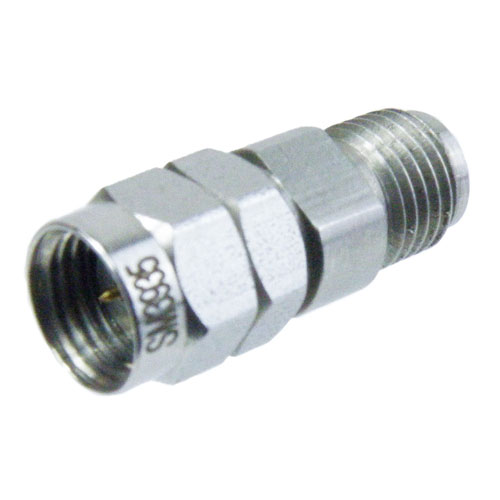

1.85mm-male-1.85mm-female-adapter-sm3935 Fairview Microwave SM3935

Call us

1.85mm Male (Plug) to 1.85mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.33 VSWR

Compare

SKU SM3935

Starting price $755.00

Estimated shipment Call Us

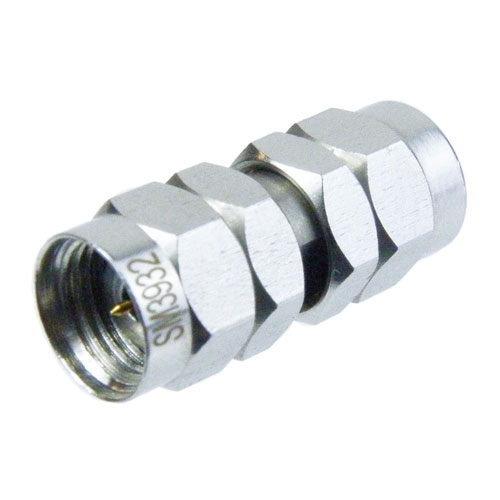

1.85mm-male-1.85mm-male-adapter-sm3932 Fairview Microwave SM3932
