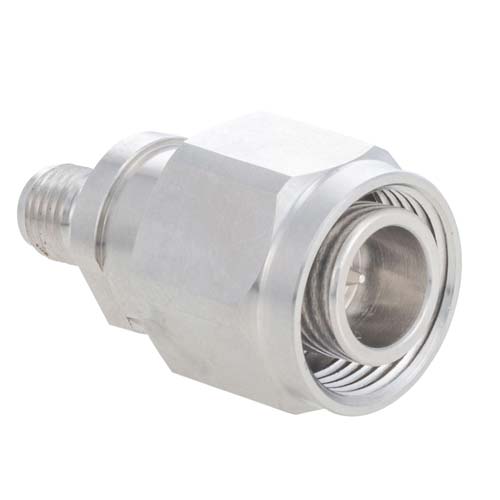

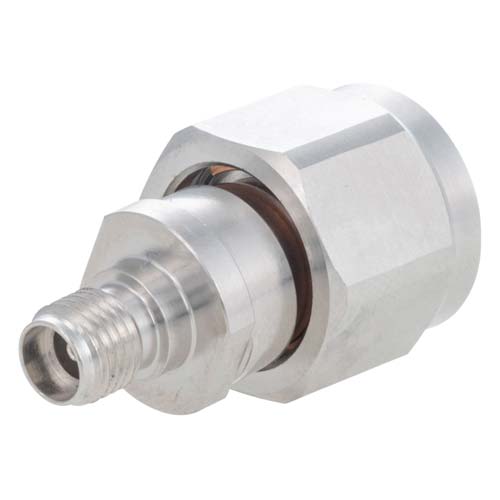

Low PIM 2.2-5 Male (Plug) to 3.5mm Female (Jack) Adapter

Low PIM 2.2-5 Male (Plug) to 3.5mm Female (Jack) Adapter

The 2.2-5 to 3.5mm low pim adapter FMAD1697 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded 2.2-5 to Threaded 3.5mm RF adapter comes wit...

The 2.2-5 to 3.5mm low pim adapter FMAD1697 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded 2.2-5 to Threaded 3.5mm RF adapter comes with a 50 Ohm impedance. Our low pim RF adapter has a dielectric withstanding voltage of 750 Vrms and a typical passive intermodulation of -160 dBc.This 2.2-5 to 3.5mm adapter is constructed with male gender on side 1 and female gender on side 2. The 2.2-5 male to 3.5mm female coaxial adapter from Fairview Microwave has a straight body style. This straight2.2-5adapter is an in-line RF adapter in a low pim design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1697 adapter has a length of 1.18 inches, a width of 0.63 inches, and a weight of 0.05 lbs.Our between series connection type RF adapter operates at a maximum frequency of 8 GHz. This 2.2-5 male to 3.5mm female radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave FMAD1697 coaxial RF adapter operates at temperatures ranging from -40 to 155 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 2.2-5 male to 3.5mm female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 2.2-5 and 3.5mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 8 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1697 FMAD1697 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

2.2-5

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

3.5mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

8 GHz

Adapter Body Style

Straight

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Body Material 2

Brass

Connector Body Plating 2

Tri-Metal

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

low-pim-2.2-5-female-2.2-5-female-adapter-fmad1269 Fairview Microwave FMAD1269

31 available

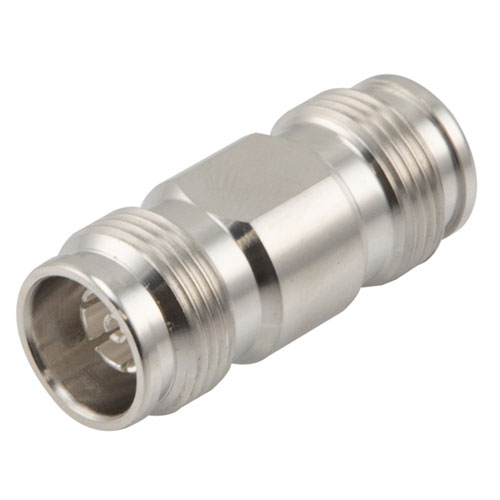

2.2-5 Female to 2.2-5 Female Adapter, Low PIM

Compare

SKU FMAD1269

Starting price $8.69

Estimated shipment Today

low-pim-2.2-5-male-2.2-5-male-adapter-fmad1268 Fairview Microwave FMAD1268

46 available

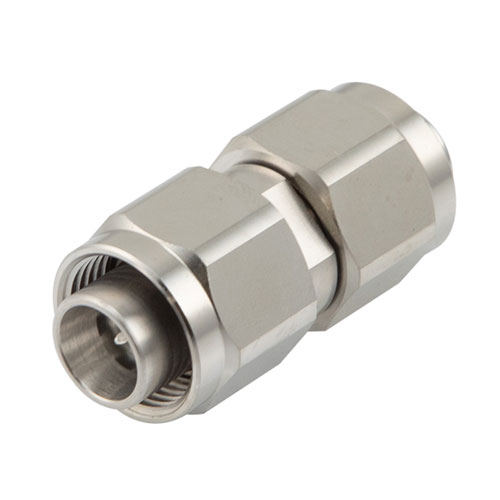

2.2-5 Male to 2.2-5 Male Adapter, Low PIM

Compare

SKU FMAD1268

Starting price $7.59

Estimated shipment Today

high-temperature-adapter-3.5mm-female-to-2.4mm-male-adapter-mil-std-202-method-206-34.5ghz-vswr1.25-mil-std-348b-with-stainless-steel-body-fmad1676 Fairview Microwave FMAD1676

3 available

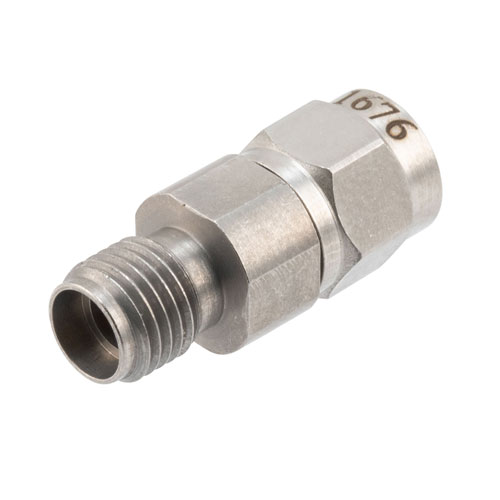

High Temperature Adapter 3.5mm Female to 2.4mm Male, 34.5GHz VSWR1.25, MIL-STD 348B with Stainless Steel Body

Compare

SKU FMAD1676

Starting price $179.99

Estimated shipment Today

high-temperature-adapter-3.5mm-female-to-2.4mm-female-adapter-mil-std-202-method-206-34.5ghz-vswr1.25-mil-std-348b-with-stainless-steel-body-fmad1677 Fairview Microwave FMAD1677

1 available

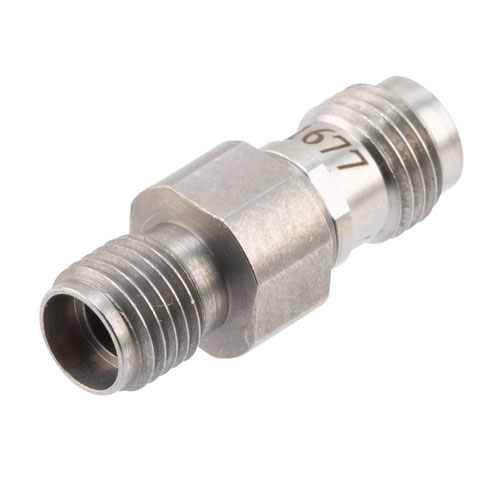

High Temperature Adapter 3.5mm Female to 2.4mm Female, 34.5GHz VSWR1.25, MIL-STD 348B with Stainless Steel Body
