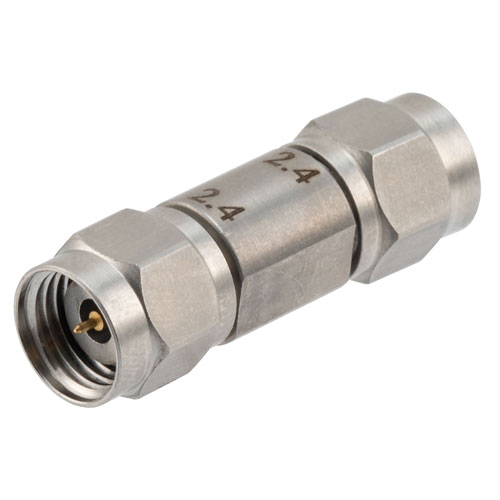

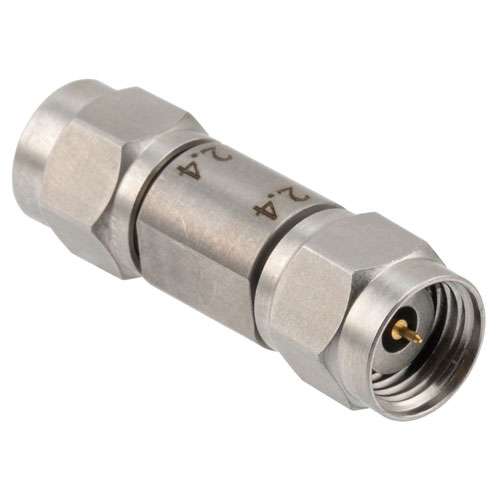

Engineering Grade 2.4mm Male (Plug) to 2.4mm Male (Plug) Adapter with Stainless Steel Body

Engineering Grade 2.4mm Male (Plug) to 2.4mm Male (Plug) Adapter with Stainless Steel Body

Name: Engineering Grade 2.4mm Male (Plug) to 2.4mm Male (Plug) Adapter with Stainless Steel Body
Brand: Fairview Microwave, Inc.
SKU: FMAD1605
Price: 169.99 USD
Availability: InStock

The engineering grade 2.4mm adapter FMAD1605 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none 2.4mm to Threaded none 2.4mm RF adapte...

The engineering grade 2.4mm adapter FMAD1605 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none 2.4mm to Threaded none 2.4mm RF adapter comes with a 50 Ohm impedance. This coaxial adapter is manufactured to precise RF component specifications and has a typical VSWR of 1.35:1 Our engineering grade RF adapter has a dielectric withstanding voltage of 500 Vrms.This none 2.4mm to none 2.4mm adapter is constructed with male gender on side 1 and male gender on side 2. The none 2.4mm male to 2.4mm male coaxial adapter from Fairview Microwave has a straight body style. This straight2.4mmadapter is an in-line RF adapter in a engineering grade design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The between series adapter has a maximum insertion loss of 0.354 dB. The FMAD1605 adapter has a length of 1.04 inches, a width of 0.31 inches, and a weight of 0.01 lbs.Our between series connection type RF adapter operates at a maximum frequency of 50 GHz. This 2.4mm male to 2.4mm male radio frequency adapter has a stainless steel connector body with passivated stainless steel body plating. The Fairview Microwave FMAD1605 coaxial RF adapter operates at temperatures ranging from -55 to 105 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 2.4mm male to 2.4mm male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 2.4mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 50 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1605 FMAD1605 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

2.4mm

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

2.4mm

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

50 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Stainless Steel

Connector Body Plating 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Stainless Steel

Connector Body Plating 2

Passivated Stainless Steel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

2-4mm-male-to-2-4mm-female-adapter-mil-std-202-method-206-stainless-steel-engineering-grade-fmad1606 Fairview Microwave FMAD1606

10 available

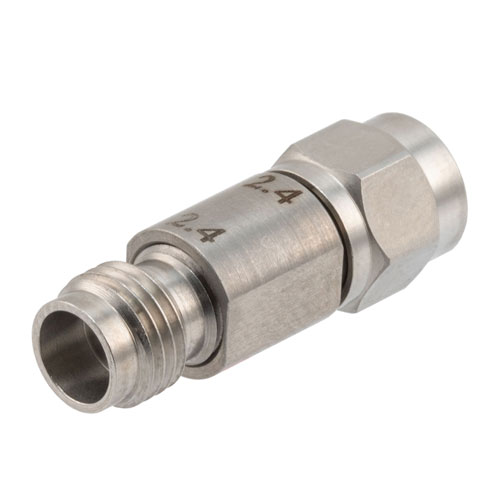

Engineering Grade 2.4mm Male (Plug) to 2.4mm Female (Jack) Adapter with Stainless Steel Body

Compare

SKU FMAD1606

Starting price $179.99

Estimated shipment Today

2-4mm-female-to-2-4mm-female-adapter-mil-std-202-method-206-stainless-steel-engineering-grade-fmad1607 Fairview Microwave FMAD1607

101 available

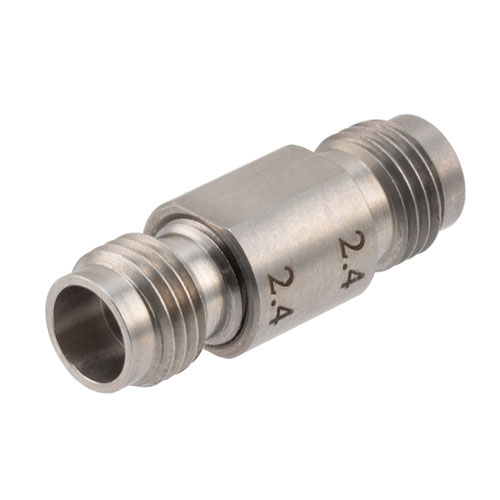

Engineering Grade 2.4mm Female (Jack) to 2.4mm Female (Jack) Adapter with Stainless Steel Body
