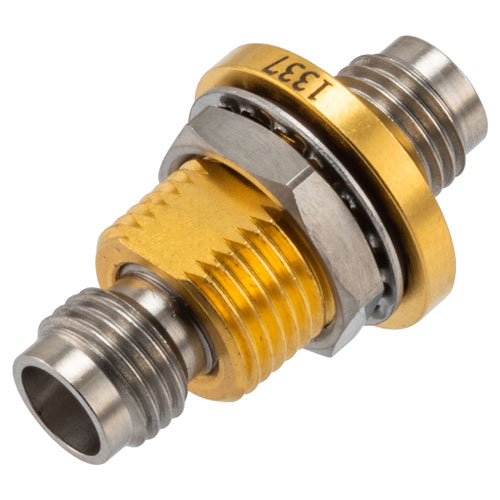

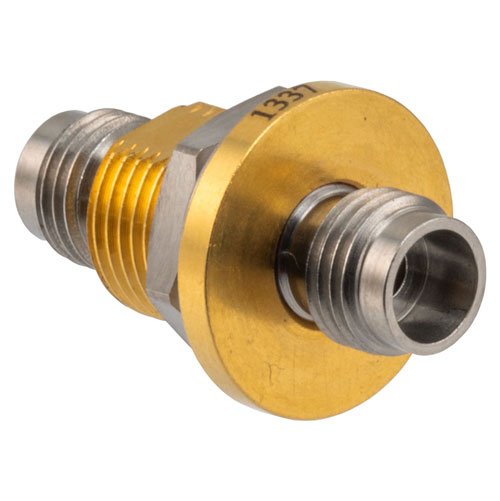

Hermetically Sealed 2.4mm Female to 2.4mm Female Bulkhead Adapter 50GHz VSWR1.35, MIL-STD-348B

Hermetically Sealed 2.4mm Female to 2.4mm Female Bulkhead Adapter 50GHz VSWR1.35, MIL-STD-348B

Name: Hermetically Sealed 2.4mm Female to 2.4mm Female Bulkhead Adapter 50GHz VSWR1.35, MIL-STD-348B
Brand: Fairview Microwave, Inc.
SKU: FMAD1337
Price: 479.99 USD
Availability: InStock

The 2.4mm adapter FMAD1337 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our hermetically sealed Threaded none 2.4mm to Threaded bulkhead 2.4mm RF ...

The 2.4mm adapter FMAD1337 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our hermetically sealed Threaded none 2.4mm to Threaded bulkhead 2.4mm RF adapter comes with a 50 Ohm impedance. This hermetically sealed adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.35:1. Our RF adapter has a dielectric withstanding voltage of 500 Vrms. This radio frequency adapter has a maximum insertion loss of 0.56 dB.This none 2.4mm to bulkhead 2.4mm adapter is constructed with female gender on side 1 and female gender on side 2. The none hermetically sealed 2.4mm female to 2.4mm female coaxial adapter from Fairview Microwave has a straight body style. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1337 adapter has a length of 0.92 inches, a width of 0.56 inches, and a weight of 0.01 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 50 GHz. This 2.4mm female to 2.4mm female radio frequency adapter has a stainless steel connector body with passivated body plating. The Fairview Microwave FMAD1337 coaxial RF adapter operates at temperatures ranging from -10 to 165 degrees C. This hermetically sealed RF adapter prevents the leakage of gases, making it suitable for high pressure or vacuum applications or whenever an airtight seal is required. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 2.4mm female to 2.4mm female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 2.4mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 50 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1337 FMAD1337 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

2.4mm

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

2.4mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

50 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Stainless Steel

Connector Body Plating 1

Passivated

Connector Mount Method 2

Bulkhead

Connector Body Material 2

Stainless Steel

Connector Body Plating 2

Passivated

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
