2.92mm Male (Plug) to 2.92mm Male (Plug) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

2.92mm Male (Plug) to 2.92mm Male (Plug) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

The standard 2.92mm adapter SM3235 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 2.92mm to none 2.92mm RF adapter comes with...

The standard 2.92mm adapter SM3235 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 2.92mm to none 2.92mm RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1.This none 2.92mm to none 2.92mm adapter is constructed with male gender on side 1 and male gender on side 2. The none none 2.92mm male to 2.92mm male coaxial adapter from Fairview Microwave has a straight body style. This straight2.92mmadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3235 adapter has a length of 0.76 inches, a width of 3 inches, and a weight of 0.01 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 40 GHz. This 2.92mm male to 2.92mm male radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave SM3235 coaxial RF adapter operates at temperatures ranging from -55 to 100 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 2.92mm male to 2.92mm male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 2.92mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 40 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3235 SM3235 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

2.92mm

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

2.92mm

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

40 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

miter-ra-2.92mm-male-2.92mm-male-adapter-fmad1218 Fairview Microwave FMAD1218

312 available

Miter RA 2.92mm Male to 2.92mm Male Adapter with Passivated Stainless Steel Body

Compare

SKU FMAD1218

Starting price $383.99

Estimated shipment Today

2.92mm-male-2.92mm-female-adapter-sm3240 Fairview Microwave SM3240

278 available

2.92mm Male (Plug) to 2.92mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.3 VSWR

Compare

SKU SM3240

Starting price $79.99

Estimated shipment Today

2.92mm-male-2.92mm-female-adapter-sm3237 Fairview Microwave SM3237

Call us

2.92mm Male (Plug) to 2.92mm Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.25 VSWR

Compare

SKU SM3237

Starting price $113.99

Estimated shipment Call Us

ra-2.92mm-male-2.92mm-male-adapter-sm3247 Fairview Microwave SM3247

Call us

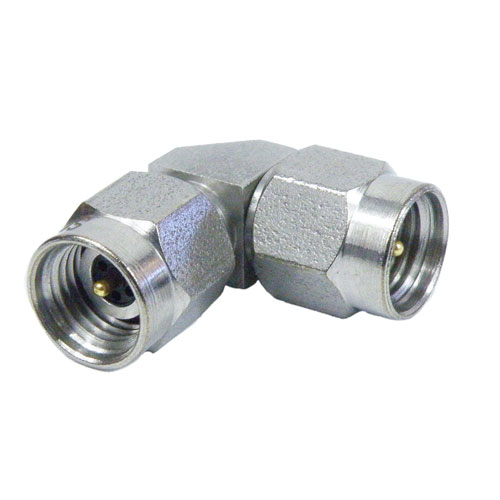

RA 2.92mm Male (Plug) to 2.92mm Male (Plug) Adapter, Passivated Stainless Steel Body, 1.3 VSWR
