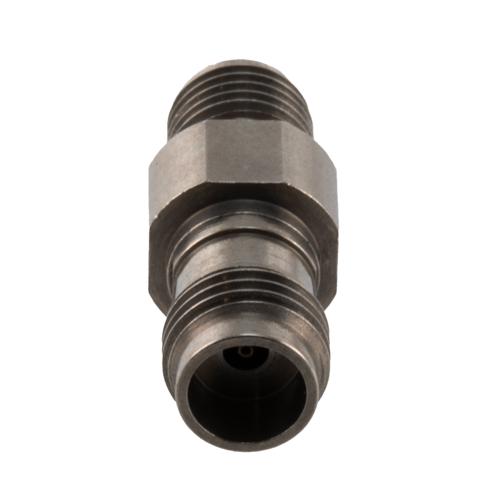

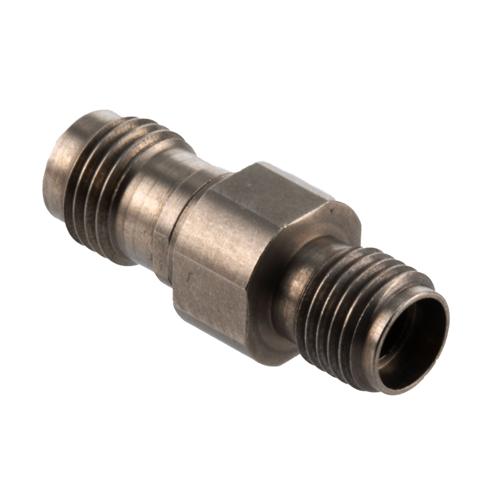

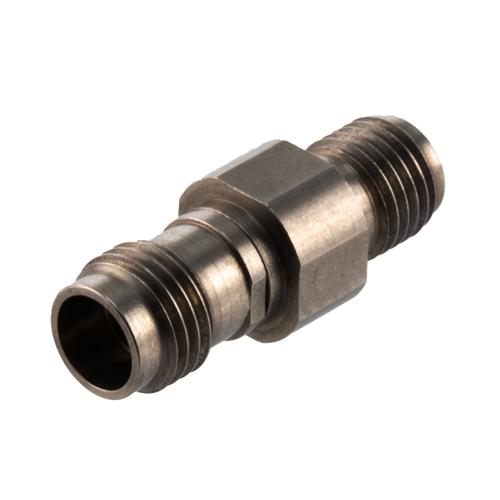

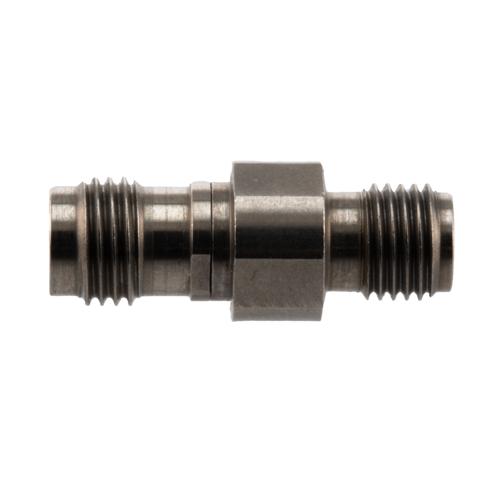

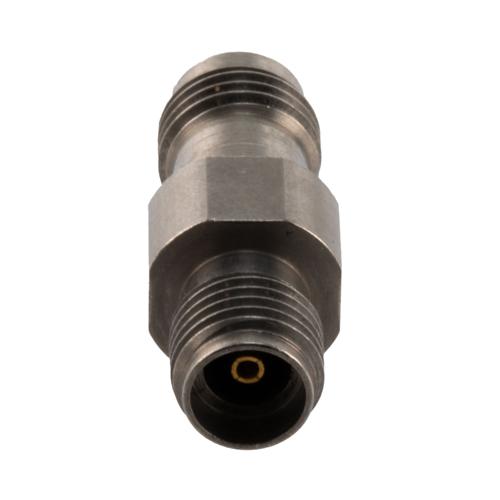

3.5mm Female (Jack) to 1.85mm Female (Jack) Adapter with Stainless Steel Body

3.5mm Female (Jack) to 1.85mm Female (Jack) Adapter with Stainless Steel Body

The 3.5mm to 1.85mm adapter FMAD10036 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our threaded 3.5mm to threaded 1.85mm RF adapter comes with a 5...

The 3.5mm to 1.85mm adapter FMAD10036 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our threaded 3.5mm to threaded 1.85mm RF adapter comes with a 50 Ohm impedance. This adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. This 3.5mm to 1.85mm adapter is constructed with the female gender on side 1 and the female gender on side 2. The 3.5mm female to 1.85mm female coaxial adapter from Fairview Microwave has a straight body style. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD10036 adapter has a length of 0.84 inches, a width of 0.31 inches, and a weight of 0.015 lbs. Our in-series RF adapter operates at a maximum frequency of 34.5 GHz. This 3.5mm female to 1.85mm female radio frequency adapter has a stainless steel connector body with passivated stainless steel body plating. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above. Fairview Microwave’s 3.5mm female to 1.85mm female adapter is part of over one million RF, microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 3.5mm to 1.85mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 34.5 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD10036 FMAD10036 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

3.5mm

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

1.85mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

34.5 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Stainless Steel

Connector Body Plating 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Stainless Steel

Connector Body Plating 2

Passivated Stainless Steel

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

3.5mm-male-1.85mm-female-adapter-sm3990 Fairview Microwave SM3990

51 available

3.5mm Male (Plug) to 1.85mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

Compare

SKU SM3990

Starting price $371.99

Estimated shipment Tomorrow

3.5mm-male-1.85mm-male-adapter-sm3995 Fairview Microwave SM3995

24 available

3.5mm Male (Plug) to 1.85mm Male (Plug) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

Compare

SKU SM3995

Starting price $101.98

Estimated shipment Tomorrow

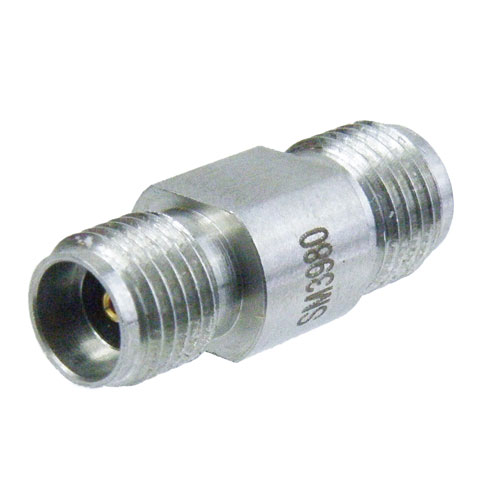

3.5mm-female-1.85mm-female-adapter-sm3980 Fairview Microwave SM3980

2 available

3.5mm Female (Jack) to 1.85mm Female (Jack) Adapter, 1.25 VSWR

Compare

SKU SM3980

Starting price $359.99

Estimated shipment Tomorrow

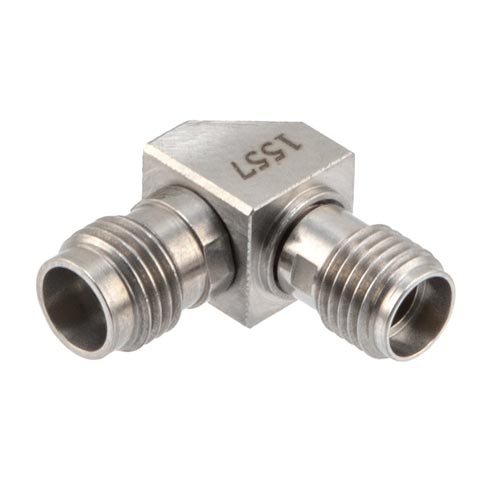

3.5mm-female-2.4mm-female-right-angle-adapter-fmad1557 Fairview Microwave FMAD1557
