3.5mm Female (Jack) to 2.4mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

3.5mm Female (Jack) to 2.4mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

The 3.5mm to 2.4mm standard adapter SM3060 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 3.5mm to Threaded none 2.4mm RF ada...

The 3.5mm to 2.4mm standard adapter SM3060 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 3.5mm to Threaded none 2.4mm RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1.This none 3.5mm to none 2.4mm adapter is constructed with female gender on side 1 and female gender on side 2. The none none 3.5mm female to 2.4mm female coaxial adapter from Fairview Microwave has a straight body style. This straight3.5mmadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3060 adapter has a length of 0.75 inches, a width of 0.25 inches, and a weight of 0.01 lbs.Our between series connection type RF adapter operates at a maximum frequency of 34.5 GHz. The Fairview Microwave SM3060 coaxial RF adapter operates at temperatures ranging from -55 to 100 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 3.5mm female to 2.4mm female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 3.5mm and 2.4mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 34.5 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3060 SM3060 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

3.5mm

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

2.4mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

34.5 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

3.5mm-female-2.4mm-female-adapter-fmad1261 Fairview Microwave FMAD1261

1 available

3.5mm Female to 2.4mm Female Adapter with Passivated Stainless Steel Body

Compare

SKU FMAD1261

Starting price $108.26

Estimated shipment Today

3.5mm-male-2.4mm-female-adapter-sm3070 Fairview Microwave SM3070

Call us

3.5mm Male (Plug) to 2.4mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

Compare

SKU SM3070

Starting price $217.99

Estimated shipment Call Us

3.5mm-female-2.4mm-female-adapter-fmad1022 Fairview Microwave FMAD1022

Call us

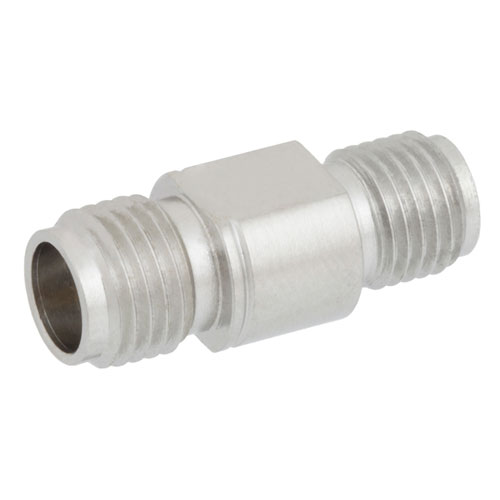

3.5mm Female (Jack) to 2.4mm Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.25 VSWR
