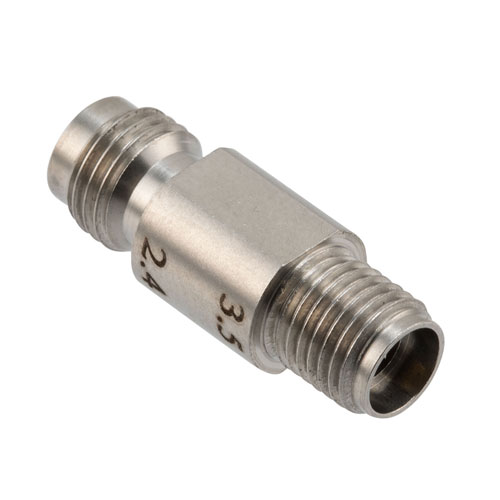

Engineering Grade 3.5mm Female (Jack) to 2.4mm Female (Jack) Adapter with Stainless Steel Body

Engineering Grade 3.5mm Female (Jack) to 2.4mm Female (Jack) Adapter with Stainless Steel Body

The 3.5mm to 2.4mm engineering grade adapter FMAD1633 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded 3.5mm to Threaded 2.4mm RF adapter...

The 3.5mm to 2.4mm engineering grade adapter FMAD1633 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded 3.5mm to Threaded 2.4mm RF adapter comes with a 50 Ohm impedance. This adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. Our engineering grade RF adapter has a dielectric withstanding voltage of 500 Vrms.This 3.5mm to 2.4mm adapter is constructed with female gender on side 1 and female gender on side 2. The 3.5mm female to 2.4mm female coaxial adapter from Fairview Microwave has a straight body style. This straight3.5mmadapter is an in-line RF adapter in a engineering grade design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The between series adapter has a maximum insertion loss of 0.257 dB. The FMAD1633 adapter has a length of 0.84 inches, a width of 0.31 inches, and a weight of 0.02 lbs.Our between series connection type RF adapter operates at a maximum frequency of 26.5 GHz. This 3.5mm female to 2.4mm female radio frequency adapter has a stainless steel connector body with passivated body plating. The Fairview Microwave FMAD1633 coaxial RF adapter operates at temperatures ranging from -55 to 105 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 3.5mm female to 2.4mm female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 3.5mm and 2.4mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 26.5 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1633 FMAD1633 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

3.5mm

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

2.4mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

26.5 GHz

Adapter Body Style

Straight

Connector Body Material 1

Stainless Steel

Connector Body Plating 1

Passivated

Connector Body Material 2

Stainless Steel

Connector Body Plating 2

Passivated

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

engineering-grade-3.5mm-male-to-2.4mm-female-adapter-mil-std-202-method-206-with-stainless-steel-body-fmad1631 Fairview Microwave FMAD1631

30 available

Engineering Grade 3.5mm Male (Plug) to 2.4mm Female (Jack) Adapter with Stainless Steel Body

Compare

SKU FMAD1631

Starting price $159.99

Estimated shipment Today

engineering-grade-3.5mm-female-to-2.4mm-male-adapter-mil-std-202-method-206-with-stainless-steel-body-fmad1632 Fairview Microwave FMAD1632

43 available

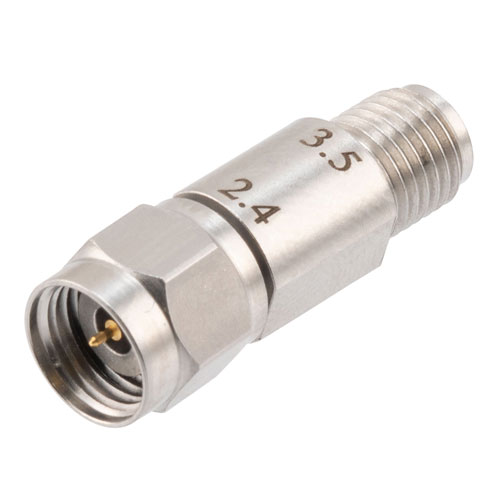

Engineering Grade 3.5mm Female (Jack) to 2.4mm Male (Plug) Adapter with Stainless Steel Body

Compare

SKU FMAD1632

Starting price $155.99

Estimated shipment Today

engineering-grade-3.5mm-male-to-2.4mm-male-adapter-mil-std-202-method-206-with-stainless-steel-body-fmad1630 Fairview Microwave FMAD1630

22 available

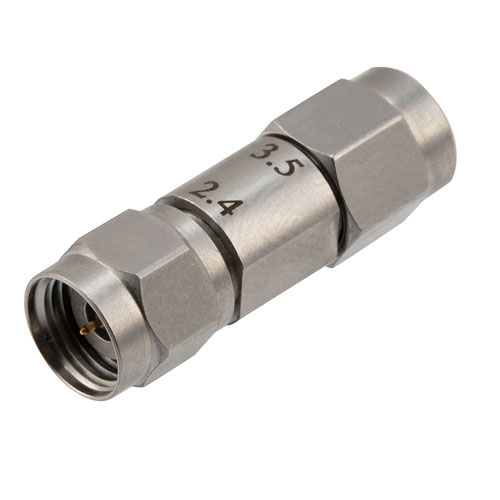

Engineering Grade 3.5mm Male (Plug) to 2.4mm Male (Plug) Adapter with Stainless Steel Body

Compare

SKU FMAD1630

Starting price $141.99

Estimated shipment Today

3-5mm-female-to-3-5mm-female-adapter-mil-std-202-method-206-stainless-steel-engineering-grade-fmad1613 Fairview Microwave FMAD1613

79 available

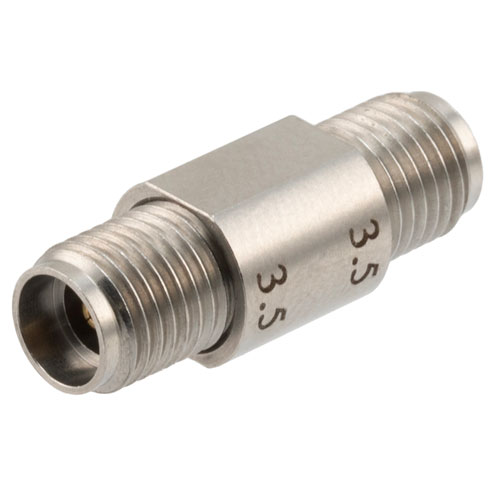

Engineering Grade 3.5mm Female (Jack) to 3.5mm Female (Jack) Adapter with Stainless Steel Body
