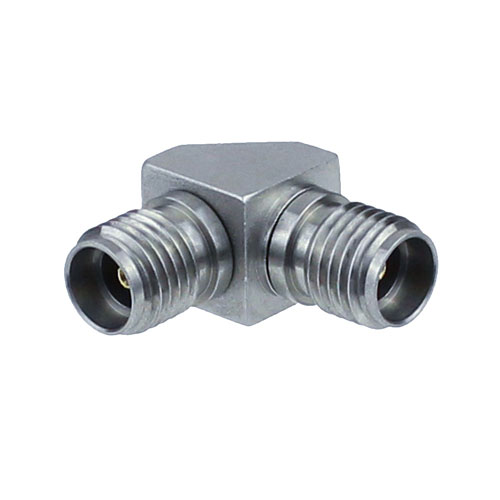

RA 3.5mm Female (Jack) to 3.5mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

RA 3.5mm Female (Jack) to 3.5mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

The standard 3.5mm adapter SM3302 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 3.5mm to Threaded none 3.5mm RF adapter come...

The standard 3.5mm adapter SM3302 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 3.5mm to Threaded none 3.5mm RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. This radio frequency adapter has a maximum insertion loss of 0.3 dB.This none 3.5mm to none 3.5mm adapter is constructed with female gender on side 1 and female gender on side 2. The none none 3.5mm female to 3.5mm female coaxial adapter from Fairview Microwave has a right angle body style. This right angle3.5mm connector adapter is a 90 degree right angle RF adapter. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3302 adapter has a length of 0.59 inches, a width of 0.59 inches, and a weight of 0.01 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 34.5 GHz. This 3.5mm female to 3.5mm female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave SM3302 coaxial RF adapter operates at temperatures ranging from -55 to 125 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 3.5mm female to 3.5mm female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 3.5mm coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 34.5 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3302 SM3302 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

3.5mm

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

3.5mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

34.5 GHz

Adapter Body Style

Right Angle

Connector Mount Method 1

None

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

ra-3.5mm-male-3.5mm-female-adapter-sm3301 Fairview Microwave SM3301

Call us

RA 3.5mm Male (Plug) to 3.5mm Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

Compare

SKU SM3301

Starting price $229.99

Estimated shipment Call Us

miter-ra-3.5mm-female-3.5mm-female-adapter-fmad1230 Fairview Microwave FMAD1230

9 available

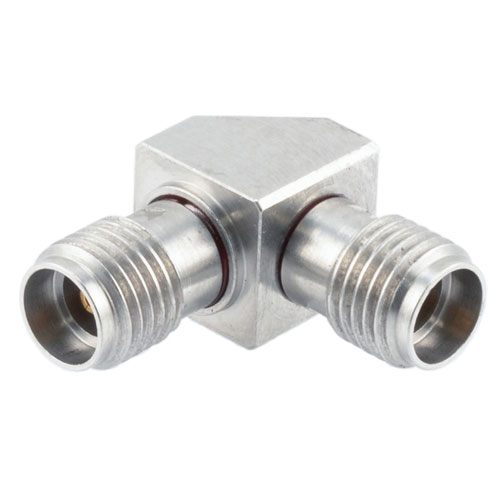

Miter RA 3.5mm Female to 3.5mm Female Adapter with Passivated Stainless Steel Body
