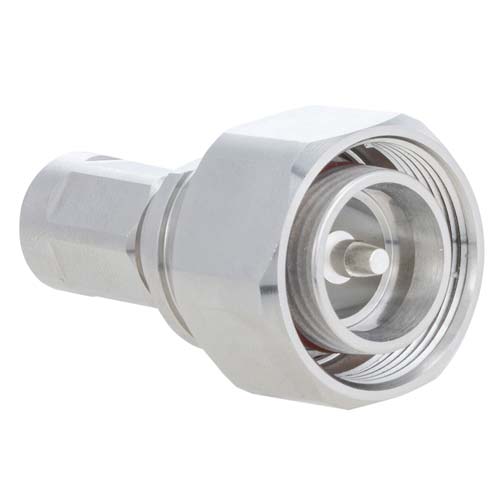

Low PIM 4.3-10 Male (Plug) to NEX10 Male (Plug) Adapter

Low PIM 4.3-10 Male (Plug) to NEX10 Male (Plug) Adapter

The 4.3-10 to NEX10 low pim adapter FMAD1699 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded 4.3-10 to Threaded NEX10 RF adapter comes w...

The 4.3-10 to NEX10 low pim adapter FMAD1699 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded 4.3-10 to Threaded NEX10 RF adapter comes with a 50 Ohm impedance. Our low pim RF adapter has a dielectric withstanding voltage of 1,000 Vrms and a typical passive intermodulation of -160 dBc.This 4.3-10 to NEX10 adapter is constructed with male gender on side 1 and male gender on side 2. The 4.3-10 male to NEX10 male coaxial adapter from Fairview Microwave has a straight body style. This straight4.3-10adapter is an in-line RF adapter in a low pim design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1699 adapter has a length of 1.57 inches, a width of 0.87 inches, and a weight of 0.1 lbs.Our between series connection type RF adapter operates at a maximum frequency of 6 GHz. This 4.3-10 male to NEX10 male radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave FMAD1699 coaxial RF adapter operates at temperatures ranging from -40 to 155 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 4.3-10 male to NEX10 male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 4.3-10 and NEX10 coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1699 FMAD1699 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

4.3-10

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

NEX10

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Straight

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Body Material 2

Brass

Connector Body Plating 2

Tri-Metal

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

low-pim-4.3-10-male-to-nex10-female-adapter-fmad1700 Fairview Microwave FMAD1700

6 available

Low PIM 4.3-10 Male (Plug) to NEX10 Female (Jack) Adapter

Compare

SKU FMAD1700

Starting price $53.99

Estimated shipment Tomorrow

low-pim-4.3-10-female-to-nex10-male-adapter-fmad1701 Fairview Microwave FMAD1701

3 available

Low PIM 4.3-10 Female (Jack) to NEX10 Male (Plug) Adapter

Compare

SKU FMAD1701

Starting price $61.99

Estimated shipment Tomorrow

low-pim-4.3-10-female-to-nex10-female-adapter-fmad1702 Fairview Microwave FMAD1702

9 available

Low PIM 4.3-10 Female (Jack) to NEX10 Female (Jack) Adapter

Compare

SKU FMAD1702

Starting price $52.99

Estimated shipment Tomorrow

low-pim-nex10-male-to-nex10-male-adapter-fmad1713 Fairview Microwave FMAD1713

12 available

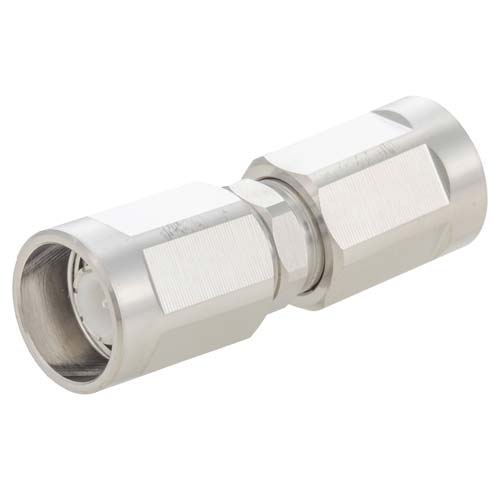

Low PIM NEX10 Male (Plug) to NEX10 Male (Plug) Adapter
