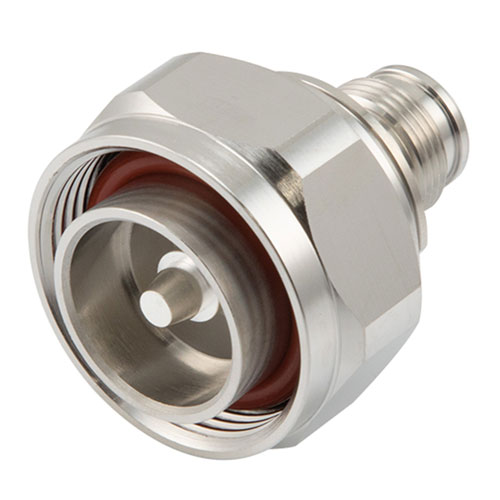

7-16 DIN Male to 2.2-5 Female Adapter, Low PIM

7-16 DIN Male to 2.2-5 Female Adapter, Low PIMFairview MicrowaveFMAD1275

7-16 DIN Male to 2.2-5 Female Adapter, Low PIM

The 7/16 DIN to 2.2-5 low pim adapter FMAD1275 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none 7/16 DIN to Threaded none 2.2-5 RF a...

The 7/16 DIN to 2.2-5 low pim adapter FMAD1275 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none 7/16 DIN to Threaded none 2.2-5 RF adapter comes with a 50 Ohm impedance. This adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. Our low pim RF adapter has a dielectric withstanding voltage of 750 Vrms and a typical passive intermodulation of -160 dBc.This none 7/16 DIN to none 2.2-5 adapter is constructed with male gender on side 1 and female gender on side 2. The none 7/16 DIN male to 2.2-5 female coaxial adapter from Fairview Microwave has a straight body style. This straight7/16 DINadapter is an in-line RF adapter in a low pim design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1275 adapter has a length of 0.09 inches, a width of 1.38 inches, and a weight of 0.21 lbs.Our between series connection type RF adapter operates at a maximum frequency of 8 GHz. This 7/16 DIN male to 2.2-5 female radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave FMAD1275 coaxial RF adapter operates at temperatures ranging from -40 to 155 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 7/16 DIN male to 2.2-5 female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 7/16 DIN and 2.2-5 coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 8 GHz radio frequency adapter as per your requirements.

SKU FMAD1275 FMAD1275 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Key specifications

Datasheet

Connector Series 1

7/16 DIN

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

2.2-5

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

8 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Tri-Metal

Product compliance

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
