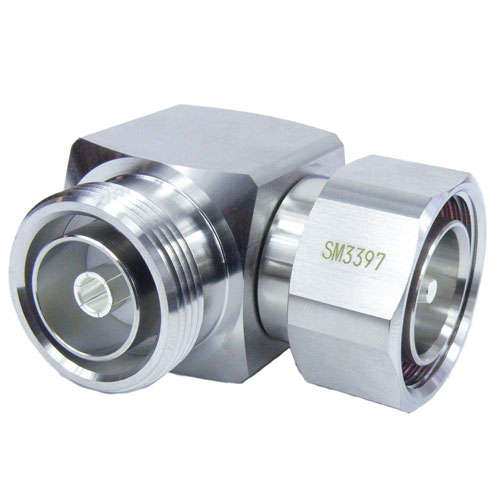

RA 7/16 DIN Male (Plug) to 7/16 DIN Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.25 VSWR

RA 7/16 DIN Male (Plug) to 7/16 DIN Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.25 VSWR

The standard 7/16 DIN adapter SM3397 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 7/16 DIN to Threaded none 7/16 DIN RF ada...

The standard 7/16 DIN adapter SM3397 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none 7/16 DIN to Threaded none 7/16 DIN RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. Our standard RF adapter has a dielectric withstanding voltage of 4,000 Vrms.This none 7/16 DIN to none 7/16 DIN adapter is constructed with male gender on side 1 and female gender on side 2. The none none 7/16 DIN male to 7/16 DIN female coaxial adapter from Fairview Microwave has a right angle body style. This right angle7/16 DIN connector adapter is a 90 degree right angle RF adapter. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3397 adapter has a length of 2.16 inches, a width of 1.85 inches, and a weight of 0.83 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 6 GHz. This 7/16 DIN male to 7/16 DIN female radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave SM3397 coaxial RF adapter operates at temperatures ranging from -40 to 120 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s 7/16 DIN male to 7/16 DIN female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build 7/16 DIN coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3397 SM3397 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

7/16 DIN

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

7/16 DIN

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Right Angle

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

7-16-male-7-16-male-adapter-sm3389 Fairview Microwave SM3389

23 available

7/16 DIN Male (Plug) to 7/16 DIN Male (Plug) Adapter, Tri-Metal Plated Brass Body, 1.15 VSWR

Compare

SKU SM3389

Starting price $45.99

Estimated shipment Tomorrow

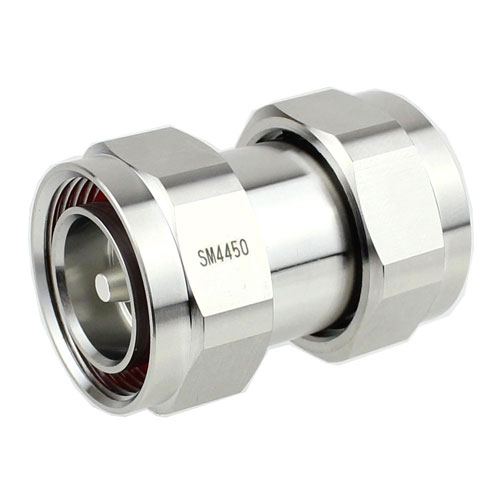

7-16-male-7-16-male-adapter-sm4450 Fairview Microwave SM4450

22 available

7/16 DIN Male (Plug) to 7/16 DIN Male (Plug) Adapter IP67 UnMated, Tri-Metal Plated Brass Body, 1.25 VSWR

Compare

SKU SM4450

Starting price $22.29

Estimated shipment Tomorrow

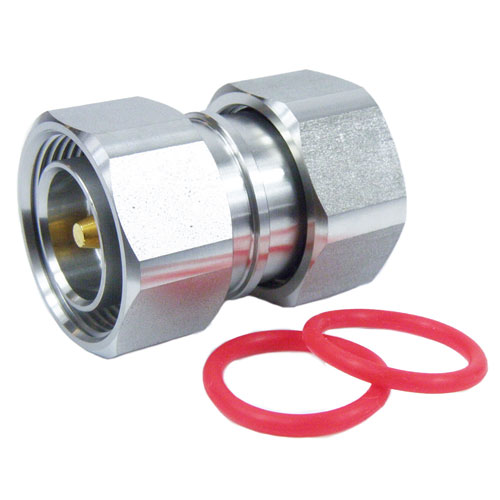

7-16-male-7-16-male-adapter-sm3391 Fairview Microwave SM3391

19 available

7/16 DIN Male (Plug) to 7/16 DIN Male (Plug) Adapter, Tri-Metal Plated Brass Body, 1.15 VSWR

Compare

SKU SM3391

Starting price $111.99

Estimated shipment Tomorrow

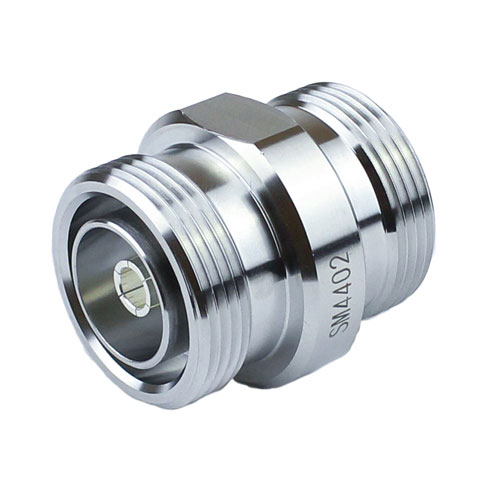

7-16-female-7-16-female-adapter-sm4402 Fairview Microwave SM4402
