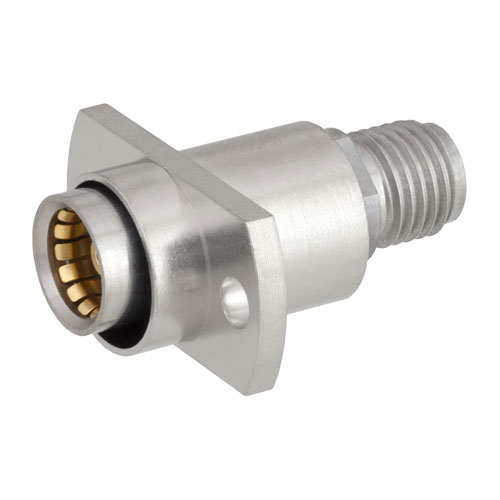

2 Hole Flange Slide-On BMA Jack to SMA Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.25 VSWR

2 Hole Flange Slide-On BMA Jack to SMA Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.25 VSWR

The BMA to SMA standard adapter FMAD1109 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none 2 hole flange BMA to Threaded none SMA RF adapter c...

The BMA to SMA standard adapter FMAD1109 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none 2 hole flange BMA to Threaded none SMA RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. Our standard RF adapter has a dielectric withstanding voltage of 1,000 Vrms. This radio frequency adapter has a maximum insertion loss of 0.13 dB.This 2 hole flange BMA to none SMA adapter is constructed with jack gender on side 1 and female gender on side 2. The 2 hole flange none BMA jack to SMA female coaxial adapter from Fairview Microwave has a straight body style. This straightBMAadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1109 adapter has a length of 0.87 inches, a width of 0.75 inches, and a weight of 0.02 lbs.Our between series connection type RF adapter operates at a maximum frequency of 18 GHz. This BMA jack to SMA female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave FMAD1109 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s BMA jack to SMA female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build BMA and SMA coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 18 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1109 FMAD1109 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Product available until inventory is depleted

This product has been discontinued and has availability until the inventory is depleted. Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

BMA

Connector Gender 1

Jack

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMA

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

18 GHz

Adapter Body Style

Straight

Connector Mount Method 1

2 Hole Flange

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
