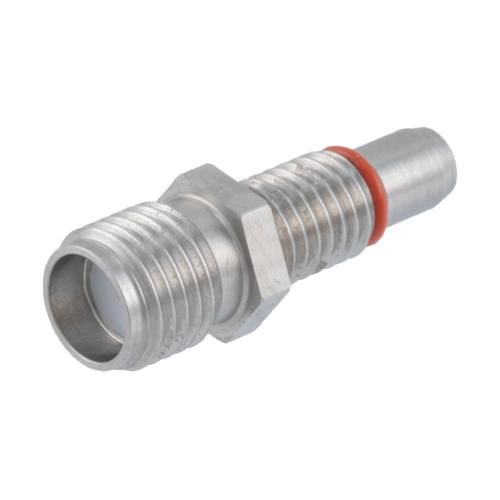

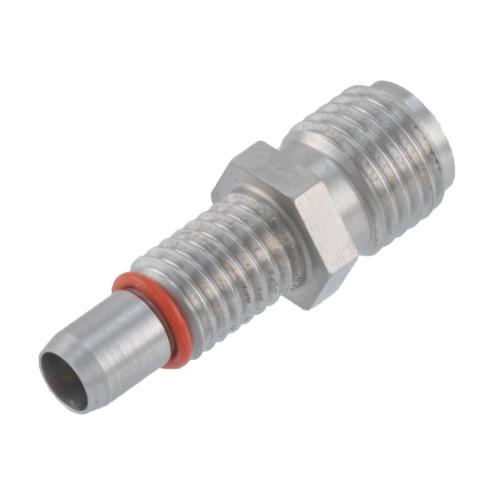

BMMA Male (Plug) to SMA Female (Jack) Bulkhead Adapter with Passivated Stainless Steel Body

BMMA Male (Plug) to SMA Female (Jack) Bulkhead Adapter with Passivated Stainless Steel Body

The BMMA to SMA adapter FMAD10003 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our BMMA to bulkhead SMA RF adapter comes with a 50 Ohm impedance. ...

The BMMA to SMA adapter FMAD10003 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our BMMA to bulkhead SMA RF adapter comes with a 50 Ohm impedance. This adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.3:1. This radio frequency adapter has a maximum insertion loss of 0.424 dB. This BMMA to bulkhead SMA adapter is constructed with the male gender on side 1 and the female gender on side 2. The BMMA male to SMA female coaxial adapter from Fairview Microwave has a straight body style. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD10003 adapter has a length of 0.76 inches, a width of 0.31 inches, and a weight of 0.006 lbs. Our RF adapter operates at a maximum frequency of 18 GHz. This BMMA male to SMA female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave FMAD10003 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above. Fairview Microwave’s BMMA male to SMA female bulkhead adapter is part of over one million RF, microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build BMMA to SMA coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 18 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD10003 FMAD10003 -0

QTY available 18

Price $117.99

Quantity Price

1-24$117.99

25-49$112.09

50-99$106.19

100-249$101.47

250-499$96.75

500+$96.75Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

BMMA

Connector Gender 1

Male

Connector Impedance 1

50 Ohm

Connector Series 2

SMA

Connector Gender 2

Female

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

18 GHz

Adapter Body Style

Straight

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

Bulkhead

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
