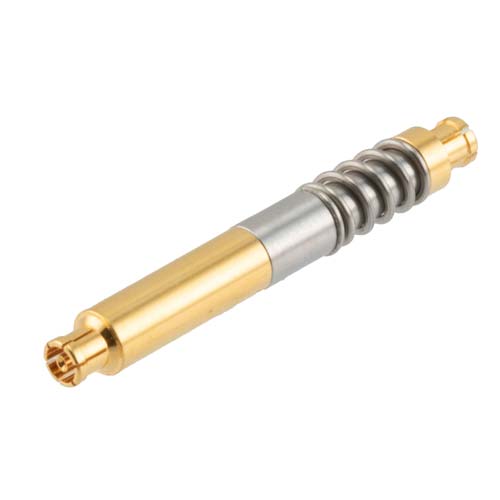

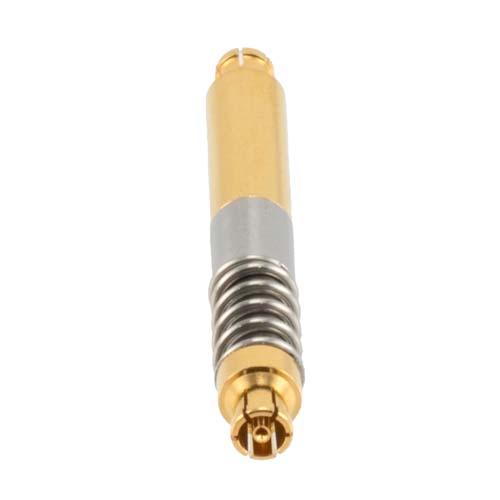

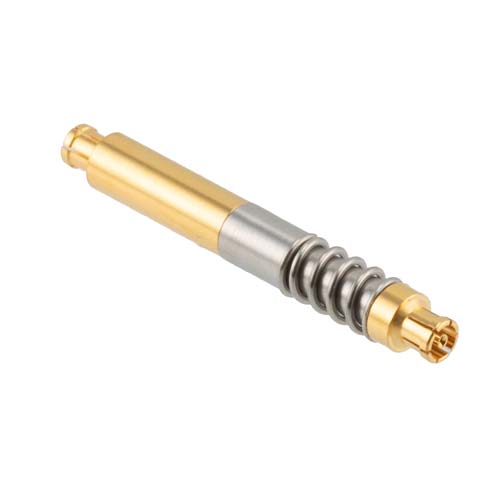

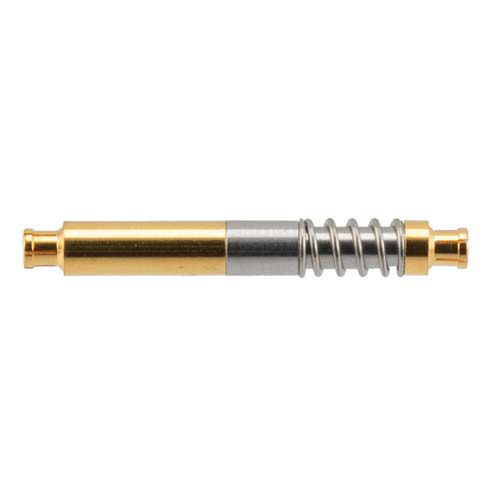

SMPM Female (Jack) to SMPM Female (Jack) Spring-loaded Adapter (Bullet), L=1.01 inch

SMPM Female (Jack) to SMPM Female (Jack) Spring-loaded Adapter (Bullet), L=1.01 inch

The mini SMP spring-loaded adapter (bullet) FMAD1748 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our mini SMP to mini SMP RF adapter comes with a...

The mini SMP spring-loaded adapter (bullet) FMAD1748 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our mini SMP to mini SMP RF adapter comes with a 50 Ohm impedance. This radio frequency adapter has a maximum insertion loss of 0.95 dB. Our push-on adapter is often used to enable board-to-board applications in high frequency modules. This mini SMP to mini SMP adapter is constructed with the female gender on side 1 and the female gender on side 2. Our push-on adapter is typically used in miniaturized high frequency modules and high data rate applications. The FMAD1748 adapter has a length of 1.01 inches, a width of 0.13 inches, and a weight of 0.01 lbs. This RF adapter from Fairview Microwave has PTFE insulator material. Our RF push-on adapter operates at a maximum frequency of 40 GHz. This mini SMP female to mini SMP female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave FMAD1748 coaxial RF adapter operates at temperatures ranging from -40 to 125 degrees C. Additional dimensions and specifications for this spring-loaded adapter (bullet) are on our downloadable PDF datasheet above. Fairview Microwave’s mini SMP female to mini SMP female adapter is part of over one million RF, microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build mini SMP coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 40 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1748 FMAD1748 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

Mini SMP

Connector Gender 1

Female

Connector Impedance 1

50 Ohm

Connector Series 2

Mini SMP

Connector Gender 2

Female

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

40 GHz

Connector Body Material 1

Passivated Stainless Steel

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

mini-smp-female-to-mini-smp-female-adapter-with-passivated-stainless-steel-body-fmad1747 Fairview Microwave FMAD1747

3 available

SMPM Female (Jack) to SMPM Female (Jack) Spring-loaded Adapter (Bullet), L=0.92 inch

Compare

SKU FMAD1747

Starting price $137.99

Estimated shipment Today

mini-smp-female-to-mini-smp-female-adapter-with-passivated-stainless-steel-body-fmad1746 Fairview Microwave FMAD1746

3 available

SMPM Female (Jack) to SMPM Female (Jack) Spring-loaded Adapter (Bullet), L=0.83 inch

Compare

SKU FMAD1746

Starting price $129.99

Estimated shipment Today

mini-smp-female-to-mini-smp-female-adapter-with-passivated-stainless-steel-body-fmad1744 Fairview Microwave FMAD1744

4 available

SMPM Female (Jack) to SMPM Female (Jack) Spring-loaded Adapter (Bullet), L=0.65 inch

Compare

SKU FMAD1744

Starting price $117.99

Estimated shipment Today

mini-smp-female-to-mini-smp-female-adapter-with-passivated-stainless-steel-body-fmad1745 Fairview Microwave FMAD1745

3 available

SMPM Female (Jack) to SMPM Female (Jack) Spring-loaded Adapter (Bullet), L=0.74 inch

Compare

SKU FMAD1745

Starting price $123.99

Estimated shipment Today
