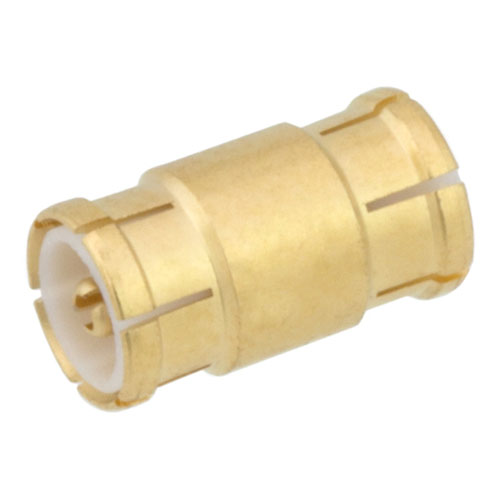

Slide-On MMBX Plug to MMBX Plug Snap-On Adapter 7mm Long Bullet, Gold Plated Beryllium Copper Body, High Temp, 1.08 VSWR

Slide-On MMBX Plug to MMBX Plug Snap-On Adapter 7mm Long Bullet, Gold Plated Beryllium Copper Body, High Temp, 1.08 VSWRFairview MicrowaveFMAD1078

Slide-On MMBX Plug to MMBX Plug Snap-On Adapter 7mm Long Bullet, Gold Plated Beryllium Copper Body, High Temp, 1.08 VSWR

The standard MMBX adapter FMAD1078 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none MMBX to none MMBX RF adapter comes with a 50 Ohm imp...

The standard MMBX adapter FMAD1078 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none MMBX to none MMBX RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.08:1. Our standard RF adapter has a dielectric withstanding voltage of 1,000 Vrms. This radio frequency adapter has a maximum insertion loss of 0.42 dB.This none MMBX to none MMBX adapter is constructed with plug gender on side 1 and plug gender on side 2. The none none MMBX plug to MMBX plug coaxial adapter from Fairview Microwave has a straight body style. This straightMMBXadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1078 adapter has a length of 0.27 inches, a width of 0.15 inches, and a weight of 0.01 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 12.4 GHz. This MMBX plug to MMBX plug radio frequency adapter has a beryllium copper connector body with gold body plating. The Fairview Microwave FMAD1078 coaxial RF adapter operates at temperatures ranging from -55 to 155 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s MMBX plug to MMBX plug adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build MMBX coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 12.4 GHz radio frequency adapter as per your requirements.

SKU FMAD1078 FMAD1078 -0

QTY available 4

Price $14.99

Quantity Price

1-24$14.99

25-49$14.24

50-99$13.49

100-249$12.89

250-499$12.29

500+$12.29Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Key specifications

Datasheet

Connector Series 1

MMBX

Connector Gender 1

Plug

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

MMBX

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

12.4 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Beryllium Copper

Connector Body Plating 1

Gold

Connector Mount Method 2

None

Connector Body Material 2

Beryllium Copper

Connector Body Plating 2

Gold

Product compliance

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
