Snap-On QMA Female (Jack) to SMA Male (Plug) Adapter, Tri-Metal Plated Brass Body, 1.18 VSWR

Snap-On QMA Female (Jack) to SMA Male (Plug) Adapter, Tri-Metal Plated Brass Body, 1.18 VSWR

The QMA to SMA standard adapter FMAD1055 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none QMA to Threaded none SMA RF adapter comes with...

The QMA to SMA standard adapter FMAD1055 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none QMA to Threaded none SMA RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.18:1. Our standard RF adapter has a dielectric withstanding voltage of 1,000 Vrms. This radio frequency adapter has a maximum insertion loss of 0.17 dB.This none QMA to none SMA adapter is constructed with female gender on side 1 and male gender on side 2. The none none QMA female to SMA male coaxial adapter from Fairview Microwave has a straight body style. This straightQMAadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1055 adapter has a length of 0.91 inches, a width of 0.31 inches, and a weight of 0.01 lbs.Our between series connection type RF adapter operates at a maximum frequency of 6 GHz. This QMA female to SMA male radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave FMAD1055 coaxial RF adapter operates at temperatures ranging from 80 to -40 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s QMA female to SMA male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build QMA and SMA coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1055 FMAD1055 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

QMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMA

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Tri-Metal

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

snap-on-qma-male-sma-female-adapter-fmad1054 Fairview Microwave FMAD1054

26 available

Snap-On QMA Male (Plug) to SMA Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.18 VSWR

Compare

SKU FMAD1054

Starting price $80.99

Estimated shipment Next Business Day

snap-on-qma-female-sma-female-adapter-fmad1056 Fairview Microwave FMAD1056

51 available

Snap-On QMA Female (Jack) to SMA Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.18 VSWR

Compare

SKU FMAD1056

Starting price $63.25

Estimated shipment Next Business Day

snap-on-qma-male-sma-male-adapter-fmad1053 Fairview Microwave FMAD1053

13 available

Snap-On QMA Male (Plug) to SMA Male (Plug) Adapter, Tri-Metal Plated Brass Body, 1.18 VSWR

Compare

SKU FMAD1053

Starting price $104.18

Estimated shipment Next Business Day

sma-male-qma-female-adapter-sm5590 Fairview Microwave SM5590

Call us

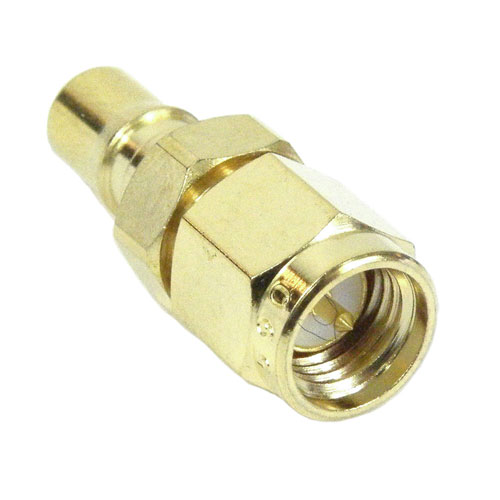

SMA Male (Plug) to QMA Female (Jack) Adapter, Gold Plated Brass Body, 1.15 VSWR
