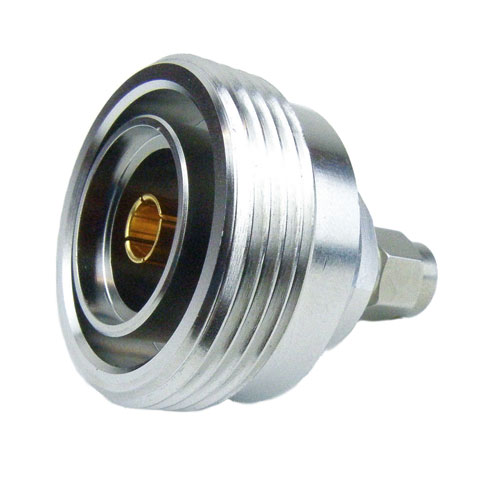

Low PIM SMA Male (Plug) to 7/16 DIN Female (Jack) Adapter, Tri-Metal Plated Brass Body, High Temp, 1.29 VSWR

Low PIM SMA Male (Plug) to 7/16 DIN Female (Jack) Adapter, Tri-Metal Plated Brass Body, High Temp, 1.29 VSWRFairview MicrowaveSM4695

Low PIM SMA Male (Plug) to 7/16 DIN Female (Jack) Adapter, Tri-Metal Plated Brass Body, High Temp, 1.29 VSWR

The SMA to 7/16 DIN low pim adapter SM4695 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded none 7/16 DIN RF ad...

The SMA to 7/16 DIN low pim adapter SM4695 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded none 7/16 DIN RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.29:1. Our low pim RF adapter has a dielectric withstanding voltage of 1,000 Vrms.This none SMA to none 7/16 DIN adapter is constructed with male gender on side 1 and female gender on side 2. The none none SMA male to 7/16 DIN female coaxial adapter from Fairview Microwave has a straight body style. This straightSMAadapter is an in-line RF adapter in a low pim design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM4695 adapter has a length of 1.3 inches, a width of 1.14 inches, and a weight of 0.14 lbs.Our between series connection type RF adapter operates at a maximum frequency of 8 GHz. This SMA male to 7/16 DIN female radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave SM4695 coaxial RF adapter operates at temperatures ranging from -55 to 155 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMA male to 7/16 DIN female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA and 7/16 DIN coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 8 GHz radio frequency adapter as per your requirements.

SKU SM4695 SM4695 -0

QTY available 10

Price $171.99

Quantity Price

1-9$171.99

10-24$165.11

25-99$158.23

100-249$151.35

250-499$144.47

500+$144.47Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Key specifications

Datasheet

Connector Series 1

SMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

7/16 DIN

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

8 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Tri-Metal

Product compliance

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
