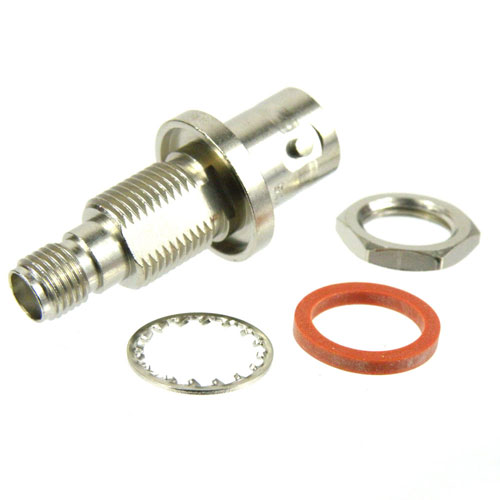

Bulkhead SMA Female (Jack) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.2 VSWR

Bulkhead SMA Female (Jack) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.2 VSWR

The SMA to BNC standard adapter SM4705 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded bulkhead SMA to Bayonet none BNC RF adapter ...

The SMA to BNC standard adapter SM4705 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded bulkhead SMA to Bayonet none BNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.2:1.This bulkhead SMA to none BNC adapter is constructed with female gender on side 1 and female gender on side 2. The bulkhead none SMA female to BNC female coaxial adapter from Fairview Microwave has a straight body style. This straightSMAadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM4705 adapter has a length of 1.32 inches, a width of 0 inches, and a weight of 0.03 lbs.Our between series connection type RF adapter operates at a maximum frequency of 4 GHz. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMA female to BNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA and BNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 4 GHz radio frequency adapter as per your requirements.

Expand

SKU SM4705 SM4705 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

BNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

4 GHz

Adapter Body Style

Straight

Connector Mount Method 1

Bulkhead

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

bulkhead-sma-female-bnc-female-adapter-sm4701 Fairview Microwave SM4701

244 available

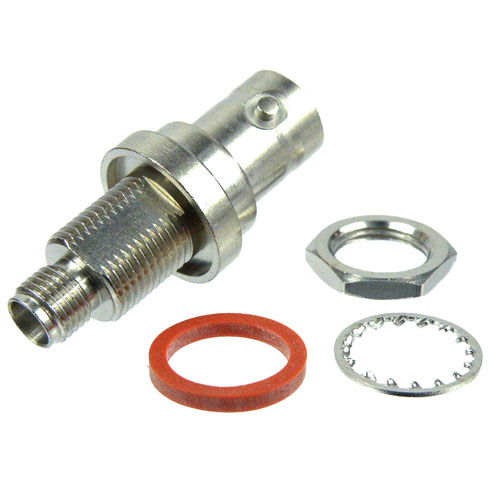

Bulkhead SMA Female (Jack) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp, 1.3 VSWR

Compare

SKU SM4701

Starting price $231.99

Estimated shipment Next Business Day

sma-female-bnc-female-bulkhead-adapter-sm4714 Fairview Microwave SM4714

426 available

SMA Female (Jack) to BNC Female (Jack) Bulkhead Adapter, High Temp, 1.3 VSWR

Compare

SKU SM4714

Starting price $60.99

Estimated shipment Next Business Day

bnc-female-bnc-female-adapter-sm3415 Fairview Microwave SM3415

44 available

BNC Female (Jack) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.2 VSWR, 50 Ohm impedance

Compare

SKU SM3415

Starting price $34.79

Estimated shipment Next Business Day

bulkhead-sma-female-bnc-female-adapter-sm4703 Fairview Microwave SM4703

977 available

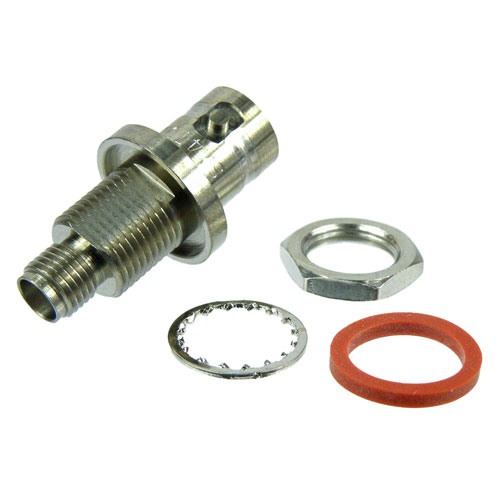

Bulkhead SMA Female (Jack) to BNC Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.3 VSWR
