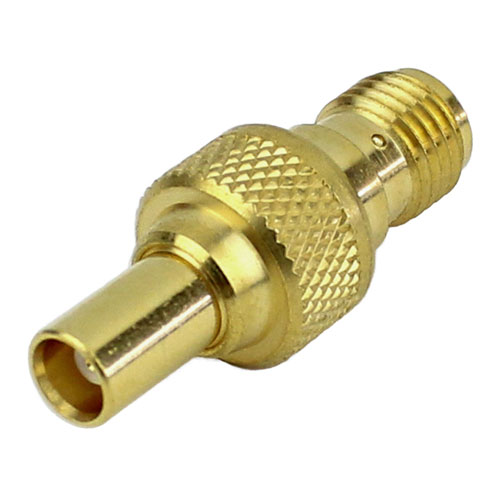

SMA Female (Jack) to MCX Female (Jack) Adapter, Gold Plated Beryllium Body, High Temp

SMA Female (Jack) to MCX Female (Jack) Adapter, Gold Plated Beryllium Body, High Temp

The SMA to MCX standard adapter 31MCX-SMA-50-1 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none SMA to none MCX RF adapter comes with a ...

The SMA to MCX standard adapter 31MCX-SMA-50-1 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none SMA to none MCX RF adapter comes with a 50 Ohm impedance.This none SMA to none MCX adapter is constructed with female gender on side 1 and female gender on side 2. The none none SMA female to MCX female coaxial adapter from Fairview Microwave has a straight body style. This straightSMAadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The 31MCX-SMA-50-1 adapter has a length of 0.85 inches, a width of 0.35 inches, and a weight of 0.01 lbs.Our between series connection type RF adapter operates at a maximum frequency of 6 GHz. This SMA female to MCX female radio frequency adapter has a beryllium copper connector body with gold body plating. The Fairview Microwave 31MCX-SMA-50-1 coaxial RF adapter operates at temperatures ranging from -55 to 155 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMA female to MCX female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA and MCX coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU 31MCX-SMA-50-1 31MCX-SMA-50-1 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: SM4787

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

MCX

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Beryllium Copper

Connector Body Plating 1

Gold

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Gold

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

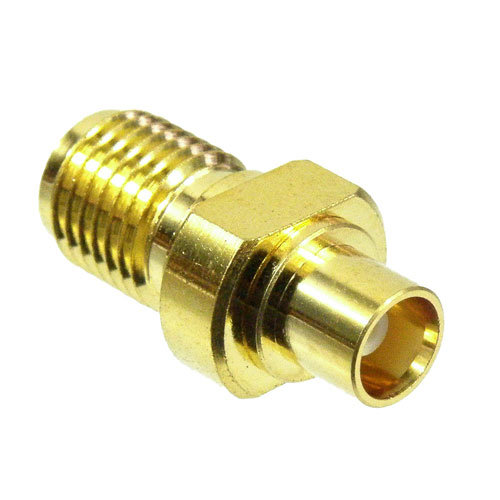

mcx-jack-sma-female-adapter-sm4787 Fairview Microwave SM4787
