RA SMA Male (Plug) to SMA Male (Plug) Adapter, Passivated Stainless Steel Body, 1.3 VSWR

RA SMA Male (Plug) to SMA Male (Plug) Adapter, Passivated Stainless Steel Body, 1.3 VSWR

The SMA adapter FMAD1116 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded none SMA RF adapter comes with a 50 O...

The SMA adapter FMAD1116 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded none SMA RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.3:1. Our RF adapter has a dielectric withstanding voltage of 1,500 Vrms.This none SMA to none SMA adapter is constructed with male gender on side 1 and male gender on side 2. The none none SMA male to SMA male coaxial adapter from Fairview Microwave has a right angle body style. This right angleSMA connector adapter is a 90 degree right angle RF adapter. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1116 adapter has a length of 0.74 inches, a width of 0.31 inches, and a weight of 0.02 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 18 GHz. This SMA male to SMA male radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave FMAD1116 coaxial RF adapter operates at temperatures ranging from -65 to 125 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMA male to SMA male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 18 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1116 FMAD1116 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMA

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

18 GHz

Adapter Body Style

Right Angle

Connector Mount Method 1

None

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

precision-ra-sma-male-sma-female-adapter-sm5228 Fairview Microwave SM5228

Call us

Precision RA SMA Male to SMA Female Adapter Functional Up to 26.5 GHz

Compare

SKU SM5228

Starting price

Estimated shipment Call Us

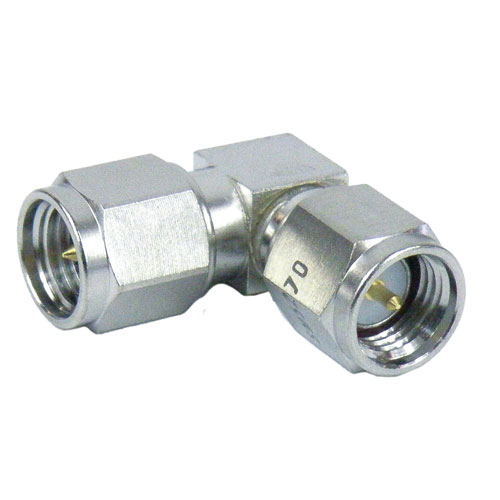

ra-sma-male-sma-male-adapter-sm5270 Fairview Microwave SM5270
