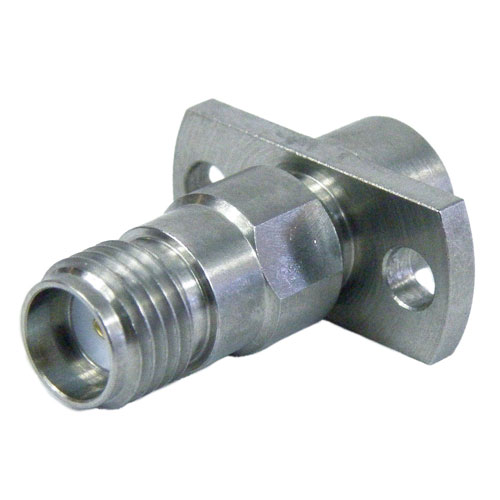

Precision SMA Female (Jack) to SMP Male (plug) Full Detent 2 Hole Flange Adapter, High Temp, 1.2 VSWR

Precision SMA Female (Jack) to SMP Male (plug) Full Detent 2 Hole Flange Adapter, High Temp, 1.2 VSWR

The SMA to SMP precision adapter SM8834 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Push-On 2 hole flange SMP RF ad...

The SMA to SMP precision adapter SM8834 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Push-On 2 hole flange SMP RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.2:1.This none SMA to 2 hole flange SMP adapter is constructed with female gender on side 1 and male gender on side 2. The none none SMA female to SMP male coaxial adapter from Fairview Microwave has a straight body style. This straightSMAadapter is an in-line RF adapter in a precision design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM8834 adapter has a length of 0.78 inches, a width of 0.28 inches, and a weight of 0.01 lbs.Our between series connection type RF adapter operates at a maximum frequency of 26.5 GHz. The Fairview Microwave SM8834 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMA female to SMP male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA and SMP coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 26.5 GHz radio frequency adapter as per your requirements.

Expand

SKU SM8834 SM8834 -0

QTY available 79

Price $193.99

Quantity Price

1-9$193.99

10-24$186.23

25-99$178.47

100-249$170.71

250-499$162.95

500+$162.95Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMP

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

26.5 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Mount Method 2

2 Hole Flange

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

precision-sma-female-to-smp-male-smooth-bore-cm-2-hole-flange-adapter-sm8836 Fairview Microwave SM8836

195 available

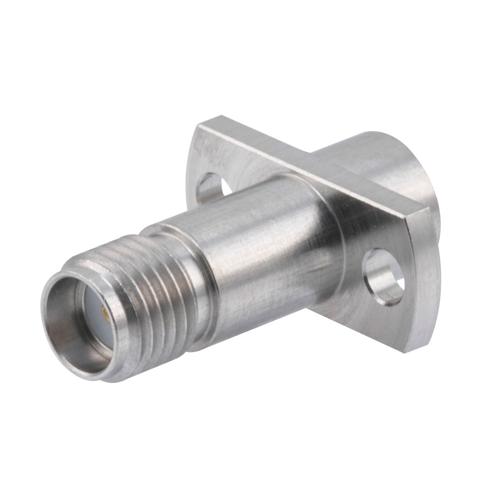

Precision SMA Female (Jack) to SMP Male (Plug) Smooth Bore CM 2 Hole Flange Adapter, Passivated Stainless Steel Body, 1.2 VSWR
