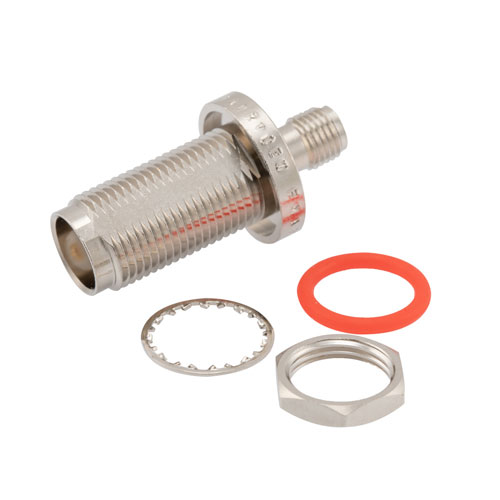

SMA Female (Jack) to TNC Female (Jack) Bulkhead Adapter, Nickel Plated Brass Body, High Temp, 1.3 VSWR

SMA Female (Jack) to TNC Female (Jack) Bulkhead Adapter, Nickel Plated Brass Body, High Temp, 1.3 VSWR

The SMA to TNC standard adapter FMAD1234 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded bulkhead TNC RF adapt...

The SMA to TNC standard adapter FMAD1234 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded bulkhead TNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.3:1.This none SMA to bulkhead TNC adapter is constructed with female gender on side 1 and female gender on side 2. The none none SMA female to TNC female coaxial adapter from Fairview Microwave has a straight body style. This straightSMAadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1234 adapter has a length of 1.3 inches, a width of 0.66 inches, and a weight of 0.04 lbs.Our between series connection type RF adapter operates at a maximum frequency of 11 GHz. This SMA female to TNC female radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave FMAD1234 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMA female to TNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA and TNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 11 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1234 FMAD1234 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

TNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

11 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

Bulkhead

Connector Body Material 2

Brass

Connector Body Plating 2

Nickel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
