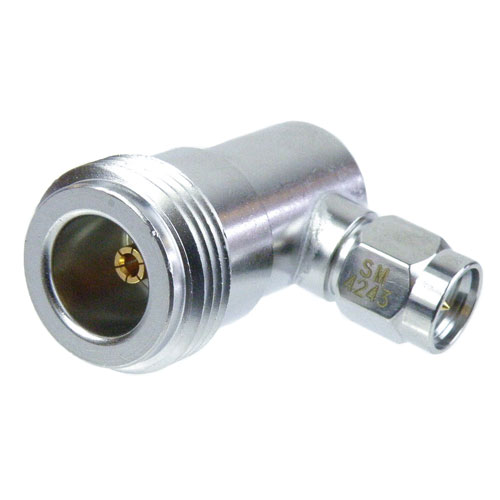

RA SMA Male (plug) to N Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.2 VSWR

RA SMA Male (plug) to N Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.2 VSWR

The SMA to type N standard adapter SM4243 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded none type N RF adapt...

The SMA to type N standard adapter SM4243 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none SMA to Threaded none type N RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.2:1. Our standard RF adapter has a dielectric withstanding voltage of 1,000 Vrms.This none SMA to none type N adapter is constructed with male gender on side 1 and female gender on side 2. The none none SMA male to type N female coaxial adapter from Fairview Microwave has a right angle body style. This right angleSMA connector adapter is a 90 degree right angle RF adapter. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM4243 adapter has a length of 1.08 inches, a width of 0.49 inches, and a weight of 0.1 lbs.Our between series connection type RF adapter operates at a maximum frequency of 6 GHz. This SMA male to type N female radio frequency adapter has a brass connector body with tri-metal body plating. The Fairview Microwave SM4243 coaxial RF adapter operates at temperatures ranging from -45 to 80 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMA male to type N female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMA and type N coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM4243 SM4243 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

N

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Right Angle

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Tri-Metal

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

ra-sma-female-n-male-adapter-sm4216 Fairview Microwave SM4216

566 available

RA SMA Female (Jack) to N Male (plug) Adapter, 1.2 VSWR

Compare

SKU SM4216

Starting price $61.99

Estimated shipment Tomorrow

n-male-sma-female-adapter-sm4269 Fairview Microwave SM4269

33 available

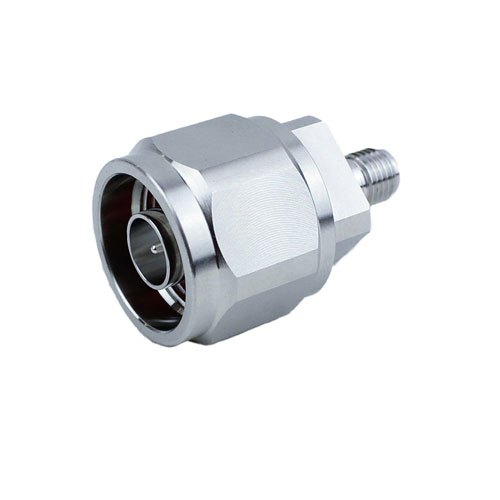

Low PIM N Male (plug) to SMA Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.2 VSWR

Compare

SKU SM4269

Starting price $79.99

Estimated shipment Tomorrow

sma-male-n-female-adapter-sm4219 Fairview Microwave SM4219

48 available

SMA Male (Plug) to N Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.3 VSWR

Compare

SKU SM4219

Starting price $56.99

Estimated shipment Tomorrow

n-female-sma-male-adapter-sm4268 Fairview Microwave SM4268

11 available

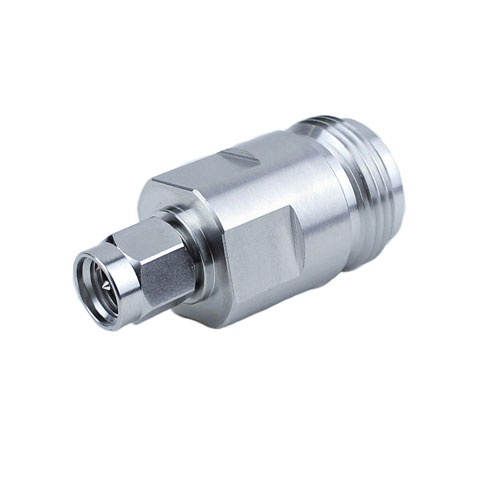

N Female (Jack) to SMA Male (Plug) Adapter, Tri-Metal Plated Brass Body, 1.2 VSWR
