SMP Female (Jack) to SMP Female (Jack) Adapter, Gold Plated Beryllium Copper Body, 1.25 VSWR

SMP Female (Jack) to SMP Female (Jack) Adapter, Gold Plated Beryllium Copper Body, 1.25 VSWR

The standard SMP adapter SM2618 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Push-On none SMP to Push-On none SMP RF adapter comes with a...

The standard SMP adapter SM2618 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Push-On none SMP to Push-On none SMP RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1.This none SMP to none SMP adapter is constructed with female gender on side 1 and female gender on side 2. The none none SMP female to SMP female coaxial adapter from Fairview Microwave has a straight body style. This straightSMPadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM2618 adapter has a length of 0.57 inches, a width of 0.13 inches, and a weight of 0 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 26.5 GHz. The Fairview Microwave SM2618 coaxial RF adapter operates at temperatures ranging from -55 to 125 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMP female to SMP female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMP coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 26.5 GHz radio frequency adapter as per your requirements.

Expand

SKU SM2618 SM2618 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

SMP

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMP

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

26.5 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Mount Method 2

None

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

smp-female-smp-female-adapter-sm2610 Fairview Microwave SM2610

407 available

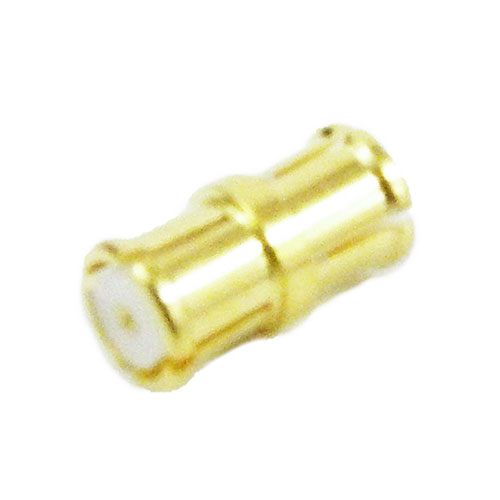

SMP Female (Jack) to SMP Female (Jack) Adapter, Gold Plated Beryllium Copper Body, 1.2 VSWR

Compare

SKU SM2610

Starting price $43.59

Estimated shipment Next Business Day

smp-female-smp-female-adapter-sm2609 Fairview Microwave SM2609

Call us

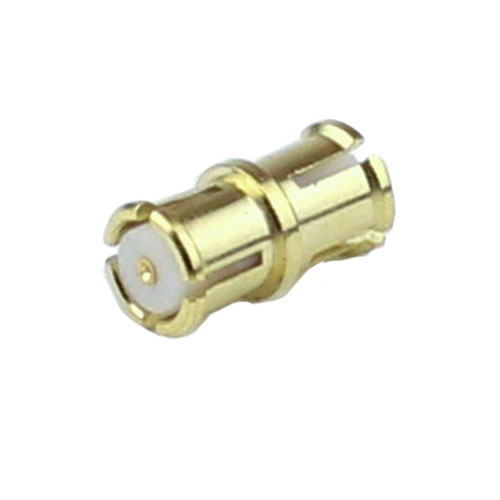

SMP Female (Jack) to SMP Female (Jack) Adapter, Gold Plated Beryllium Copper Body, High Temp, 1.4 VSWR

Compare

SKU SM2609

Starting price $22.59

Estimated shipment Call Us

smp-female-smp-female-adapter-sm2614 Fairview Microwave SM2614

392 available

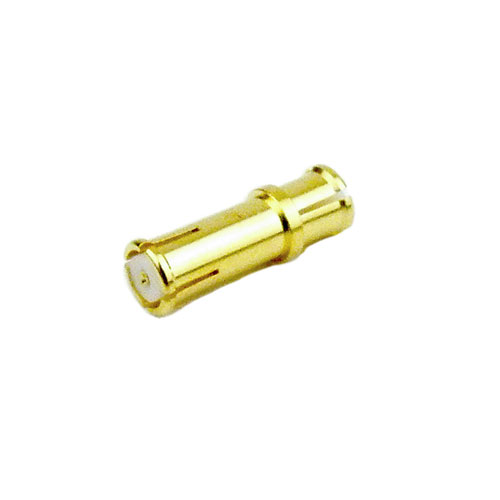

SMP Female (Jack) to SMP Female (Jack) Adapter, Gold Plated Beryllium Copper Body, 1.2 VSWR

Compare

SKU SM2614

Starting price $45.19

Estimated shipment Next Business Day

smp-female-smp-female-adapter-sm2611 Fairview Microwave SM2611

6 available

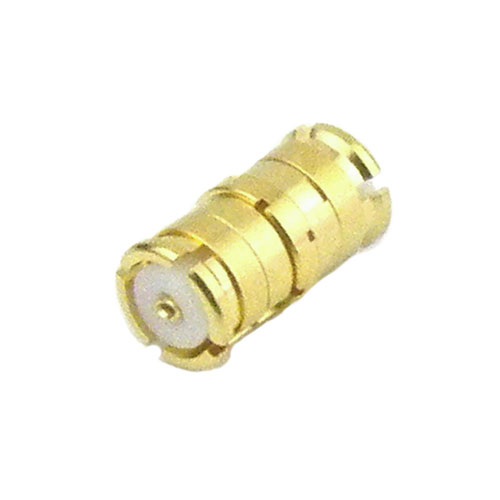

SMP Female (Jack) to SMP Female (Jack) Adapter, Gold Plated Beryllium Copper Body, 1.2 VSWR
