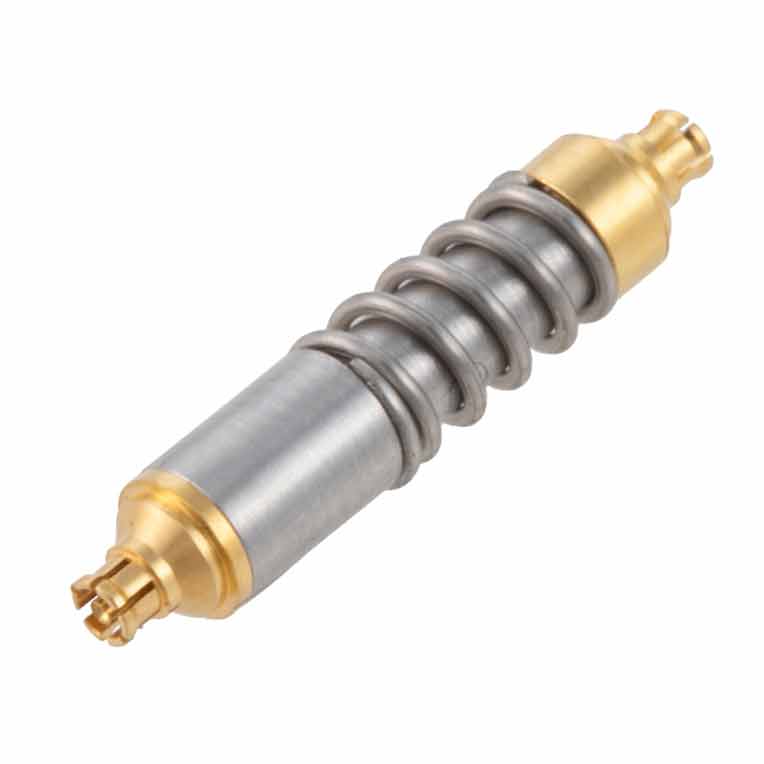

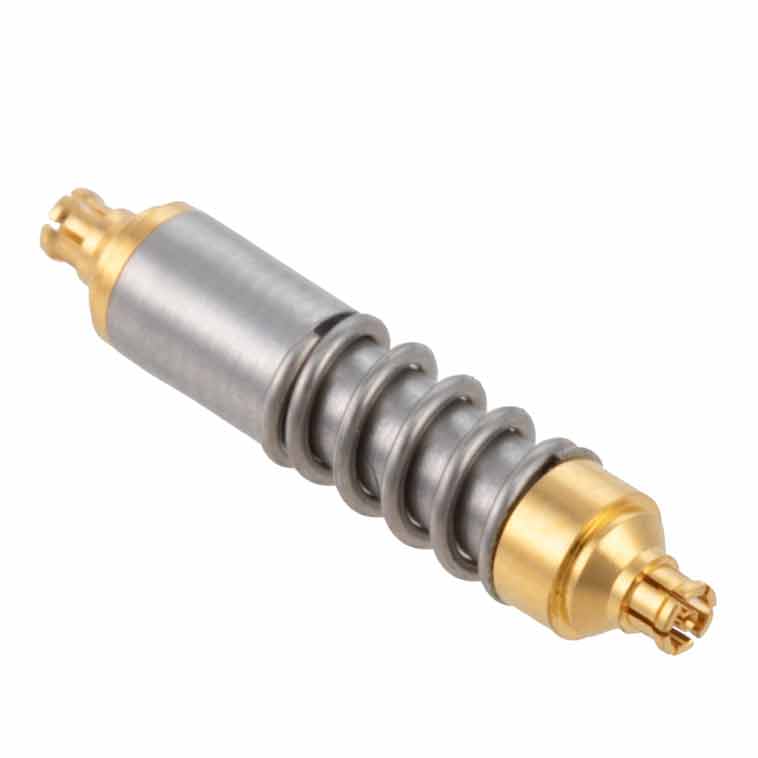

RF Adapter, SMPS Female (Jack) to SMPS Female (Jack) Spring Loaded

RF Adapter, SMPS Female (Jack) to SMPS Female (Jack) Spring LoadedFairview MicrowaveFMAD9989

RF Adapter, SMPS Female (Jack) to SMPS Female (Jack) Spring Loaded

The standard SMPS adapter FMAD9989 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none SMPS to Threaded none SMPS RF adapter comes with...

The standard SMPS adapter FMAD9989 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our Threaded none SMPS to Threaded none SMPS RF adapter comes with a 50 Ohm impedance. This radio frequency adapter has a maximum insertion loss of 0.82 dB.This none SMPS to none SMPS adapter is constructed with female gender on side 1 and female gender on side 2. The none SMPS female to SMPS female coaxial adapter from Fairview Microwave has a straight body style. This straightSMPSadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD9989 adapter has a length of 0.65 inches, a width of 0.13 inches, and a weight of 0.01 lbs.Our between series connection type RF adapter operates at a maximum frequency of 40 GHz. This SMPS female to SMPS female radio frequency adapter has a beryllium copper connector body with gold body plating. The Fairview Microwave FMAD9989 coaxial RF adapter operates at temperatures ranging from -55 to -165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s SMPS female to SMPS female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build SMPS coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 40 GHz radio frequency adapter as per your requirements.

SKU FMAD9989 FMAD9989 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Key specifications

Datasheet

Connector Series 1

SMPS

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMPS

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

40 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Beryllium Copper

Connector Body Plating 1

Gold

Connector Mount Method 2

None

Connector Body Material 2

Beryllium Copper

Connector Body Plating 2

Gold

Product compliance

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

vita-67.3-smps-female-to-full-detent-smps-male-adapter-fmcn49828 Fairview Microwave FMCN49828

24 available

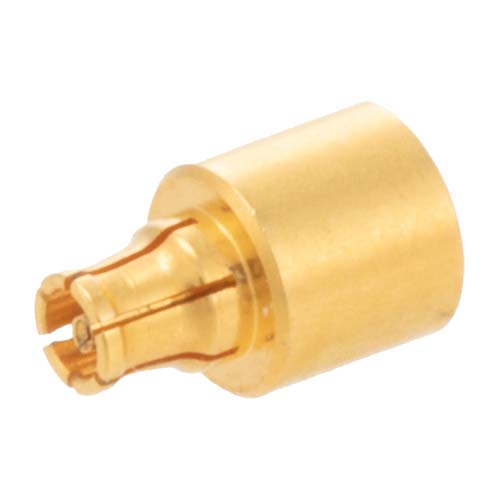

VITA 67.3 SMPS Female to Full Detent SMPS Male Adapter

Compare

SKU FMCN49828

Starting price $117.99

Estimated shipment Next Business Day

smps-female-to-smps-female-adapter-mil-std-202-method-106-less-step-7b-fmad9990 Fairview Microwave FMAD9990

Call us

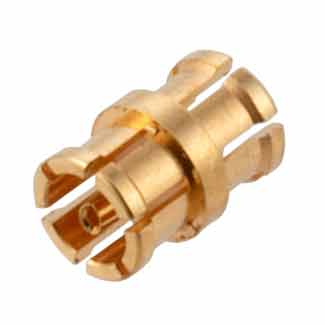

RF Adapter, SMPS Female (Jack) to SMPS Female (Jack), Bullet, OAL 0.098 inches

Compare

SKU FMAD9990

Starting price $59.99

Estimated shipment Call Us

vita-67.3-full-detent-smps-male-to-smooth-bore-smps-male-adapter-fmcn49830 Fairview Microwave FMCN49830

20 available

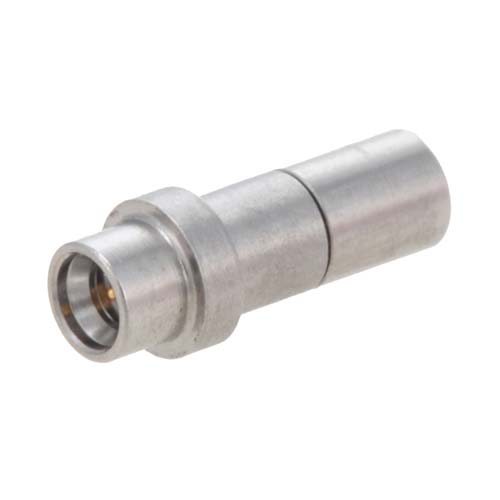

VITA 67.3 Full Detent SMPS Male to Smooth Bore SMPS Male Adapter

Compare

SKU FMCN49830

Starting price $269.99

Estimated shipment Next Business Day

smps-female-to-smps-female-adapter-with-passivated-stainless-steel-body-fmad1749 Fairview Microwave FMAD1749

10 available

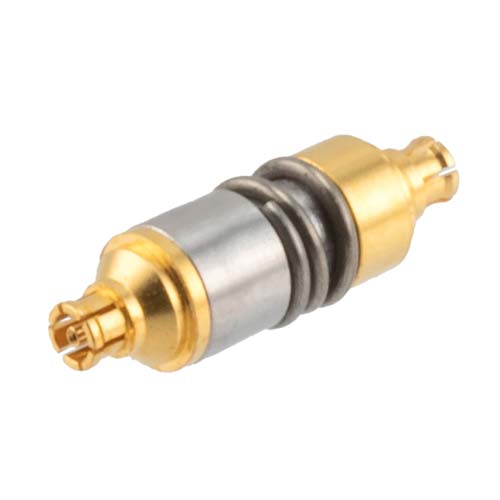

SMPS Female (Jack) to SMPS Female (Jack) Spring-loaded Adapter (Bullet), L=0.42 inch
