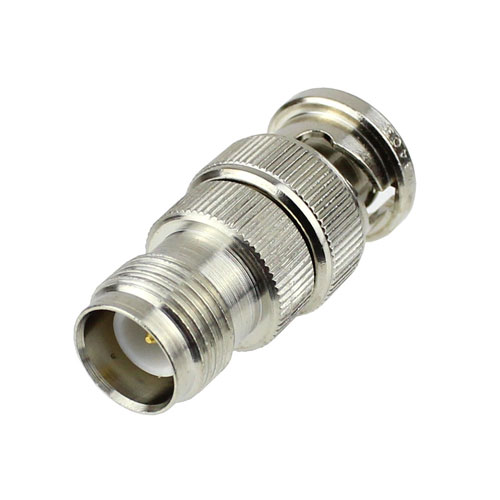

RP TNC Female (Jack) to BNC Male (Plug) Adapter, Nickel Plated Brass Body, High Temp, 1.25 VSWR

RP TNC Female (Jack) to BNC Male (Plug) Adapter, Nickel Plated Brass Body, High Temp, 1.25 VSWRFairview MicrowaveSM3403

RP TNC Female (Jack) to BNC Male (Plug) Adapter, Nickel Plated Brass Body, High Temp, 1.25 VSWR

The TNC to BNC standard adapter SM3403 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none reverse polarity Threaded none TNC to Bayonet none BN...

The TNC to BNC standard adapter SM3403 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none reverse polarity Threaded none TNC to Bayonet none BNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1. Our standard RF adapter has a dielectric withstanding voltage of 1,500 Vrms.This reverse polarity none TNC to none BNC adapter is constructed with female gender on side 1 and male gender on side 2. The reverse polarity none none TNC female to BNC male coaxial adapter from Fairview Microwave has a straight body style. This straightreverse polarity TNCadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3403 adapter has a length of 1.22 inches, a width of 0.56 inches, and a weight of 0.07 lbs.Our between series connection type RF adapter operates at a maximum frequency of 4 GHz. This TNC reverse polarity female to BNC male radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave SM3403 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s TNC female reverse polarity to BNC male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build TNC and BNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 4 GHz radio frequency adapter as per your requirements.

SKU SM3403 SM3403 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Key specifications

Datasheet

Connector Series 1

TNC

Connector Gender 1

Female

Connector Polarity 1

Reverse Polarity

Connector Impedance 1

50 Ohm

Connector Series 2

BNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

4 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Nickel

Product compliance

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

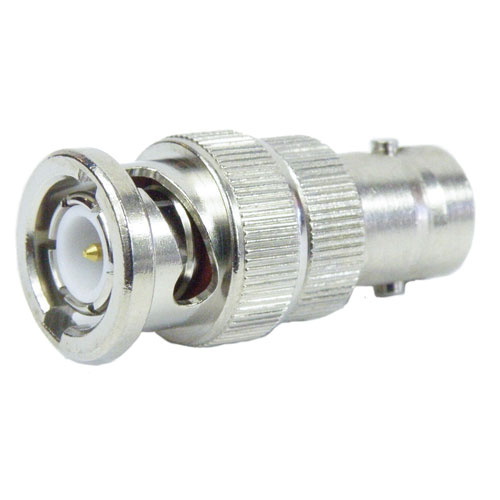

bnc-male-rp-bnc-female-adapter-sm3401 Fairview Microwave SM3401

204 available

BNC Male (plug) to RP BNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.2 VSWR

Compare

SKU SM3401

Starting price $12.80

Estimated shipment Next Business Day

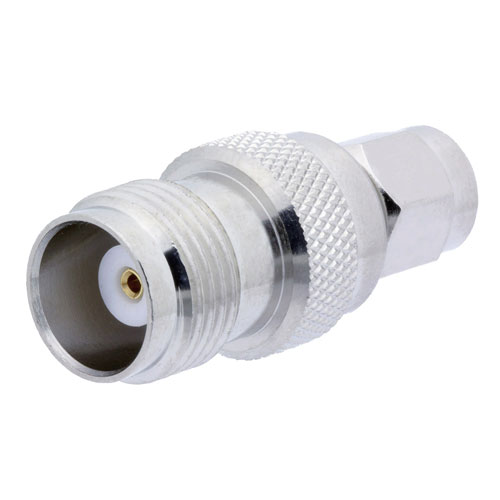

rp-sma-male-tnc-female-adapter-sm5806 Fairview Microwave SM5806

109 available

RP SMA Male (plug) to TNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.2 VSWR

Compare

SKU SM5806

Starting price $95.99

Estimated shipment Next Business Day

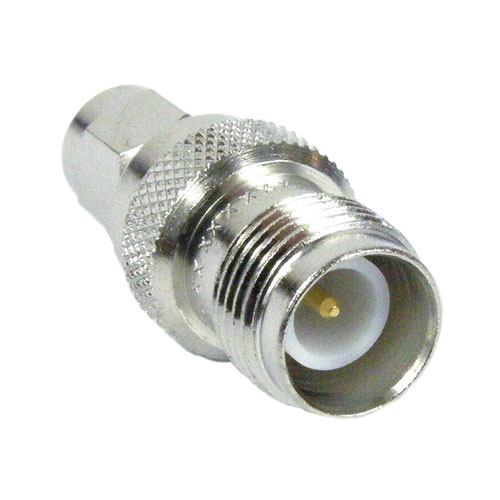

sma-male-rp-tnc-female-adapter-sm5805 Fairview Microwave SM5805

43 available

SMA Male (Plug) to RP TNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp, 1.25 VSWR

Compare

SKU SM5805

Starting price $85.99

Estimated shipment Next Business Day

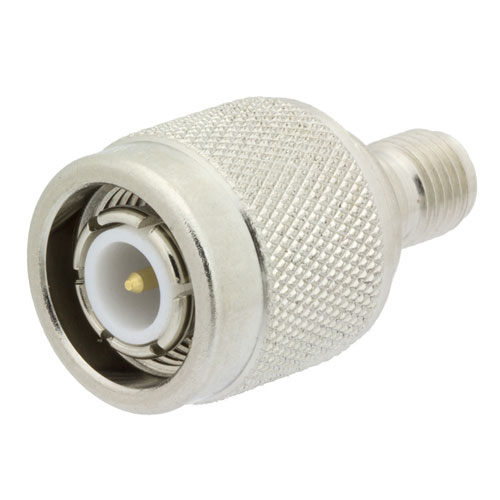

rp-sma-female-tnc-male-adapter-sm5810 Fairview Microwave SM5810
