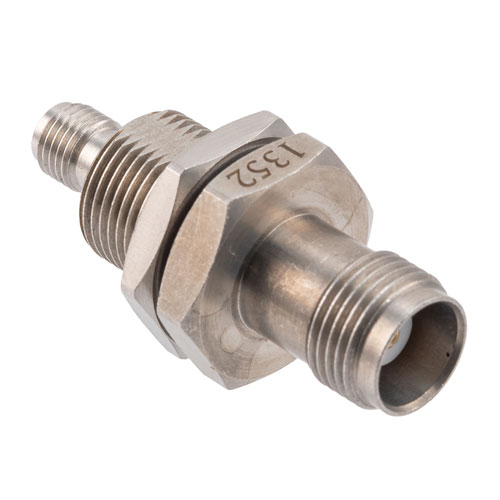

Hermetically Sealed TNC Female to SMA Female Bulkhead Adapter 18GHz VSWR1.3, MIL-STD 348B

Hermetically Sealed TNC Female to SMA Female Bulkhead Adapter 18GHz VSWR1.3, MIL-STD 348B

The TNC to SMA adapter FMAD1352 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our hermetically sealed Threaded none TNC to Threaded bulkhead SMA RF...

The TNC to SMA adapter FMAD1352 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our hermetically sealed Threaded none TNC to Threaded bulkhead SMA RF adapter comes with a 50 Ohm impedance. This hermetically sealed adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.35:1. Our RF adapter has a dielectric withstanding voltage of 1,500 Vrms. This radio frequency adapter has a maximum insertion loss of 0.25 dB.This none TNC to bulkhead SMA adapter is constructed with female gender on side 1 and female gender on side 2. The none hermetically sealed TNC female to SMA female coaxial adapter from Fairview Microwave has a straight body style. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The FMAD1352 adapter has a length of 1.54 inches, a width of 0.69 inches, and a weight of 0.06 lbs.Our between series connection type RF adapter operates at a maximum frequency of 18 GHz. This TNC female to SMA female radio frequency adapter has a stainless steel connector body with passivated body plating. The Fairview Microwave FMAD1352 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. This hermetically sealed RF adapter prevents the leakage of gases, making it suitable for high pressure or vacuum applications or whenever an airtight seal is required. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s TNC female to SMA female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build TNC and SMA coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 18 GHz radio frequency adapter as per your requirements.

Expand

SKU FMAD1352 FMAD1352 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

SMA

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

18 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Stainless Steel

Connector Body Plating 1

Passivated

Connector Mount Method 2

Bulkhead

Connector Body Material 2

Stainless Steel

Connector Body Plating 2

Passivated

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
