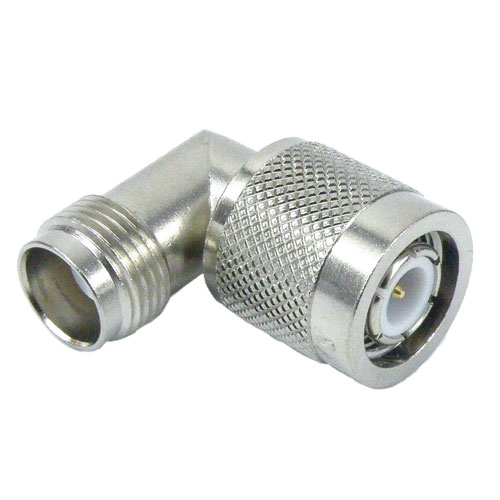

RA TNC Male (Plug) to TNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.25 VSWR

RA TNC Male (Plug) to TNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.25 VSWR

The standard TNC adapter SM5745 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none TNC to none TNC RF adapter comes with a 50 Ohm impedanc...

The standard TNC adapter SM5745 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none TNC to none TNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.25:1.This none TNC to none TNC adapter is constructed with male gender on side 1 and female gender on side 2. The none none TNC male to TNC female coaxial adapter from Fairview Microwave has a right angle body style. This right angleTNC connector adapter is a 90 degree right angle RF adapter. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM5745 adapter has a length of 1.05 inches, a width of 0 inches, and a weight of 0.05 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 6 GHz. This TNC male to TNC female radio frequency adapter has a brass connector body with nickel body plating. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s TNC male to TNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build TNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM5745 SM5745 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: FMAD1212

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

TNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Right Angle

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
