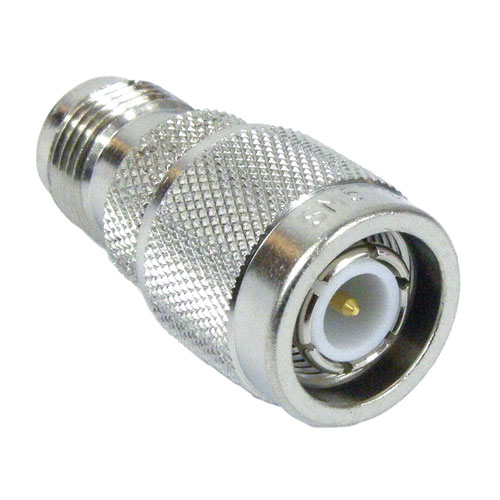

TNC Male (Plug) to RP TNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp

TNC Male (Plug) to RP TNC Female (Jack) Adapter, Nickel Plated Brass Body, High Temp

The standard TNC adapter SM5798 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to reverse polarity Threaded none TNC RF a...

The standard TNC adapter SM5798 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none TNC to reverse polarity Threaded none TNC RF adapter comes with a 50 Ohm impedance.This none TNC to reverse polarity none TNC adapter is constructed with male gender on side 1 and female gender on side 2. The none none TNC male to reverse polarity TNC female coaxial adapter from Fairview Microwave has a straight body style. This straightTNCadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM5798 adapter has a length of 1.21 inches, a width of 0.59 inches, and a weight of 0.05 lbs.Our in-series connection type RF adapter operates at a maximum frequency of 6 GHz. This TNC male to TNC reverse polarity female radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave SM5798 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s TNC male to TNC female reverse polarity adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build TNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM5798 SM5798 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

TNC

Connector Gender 2

Female

Connector Polarity 2

Reverse Polarity

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Nickel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
