Low PIM N Female (Jack) to 7/16 DIN Female (Jack) Adapter, Silver Plated Brass Body, 1.15 VSWR

Low PIM N Female (Jack) to 7/16 DIN Female (Jack) Adapter, Silver Plated Brass Body, 1.15 VSWR

The type N to 7/16 DIN low pim adapter SM4673 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none type N to Threaded none 7/16 DIN...

The type N to 7/16 DIN low pim adapter SM4673 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none type N to Threaded none 7/16 DIN RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.15:1. Our low pim RF adapter has a dielectric withstanding voltage of 2,500 Vrms.This none type N to none 7/16 DIN adapter is constructed with female gender on side 1 and female gender on side 2. The none none type N female to 7/16 DIN female coaxial adapter from Fairview Microwave has a straight body style. This straighttype Nadapter is an in-line RF adapter in a low pim design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM4673 adapter has a length of 1.66 inches, a width of 0 inches, and a weight of 0.19 lbs.Our between series connection type RF adapter operates at a maximum frequency of 6 GHz. The Fairview Microwave SM4673 coaxial RF adapter operates at temperatures ranging from -45 to 120 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s type N female to 7/16 DIN female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build type N and 7/16 DIN coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 6 GHz radio frequency adapter as per your requirements.

Expand

SKU SM4673 SM4673 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

7/16 DIN

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

6 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

n-female-7-16-female-adapter-sm4677 Fairview Microwave SM4677

3 available

Low PIM N Female (Jack) to 7/16 DIN Female (Jack) Adapter, Tri-Metal Plated Brass Body, 1.25 VSWR

Compare

SKU SM4677

Starting price $85.99

Estimated shipment Today

n-female-7-16-female-adapter-sm4674 Fairview Microwave SM4674

18 available

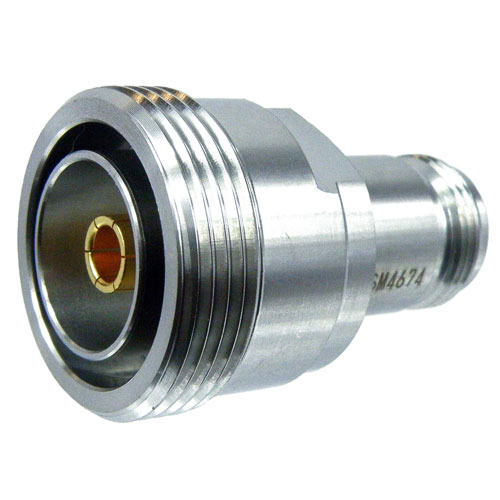

N Female (Jack) to 7/16 DIN Female (Jack) Adapter, 1.15 VSWR

Compare

SKU SM4674

Starting price $139.99

Estimated shipment Today

n-female-7-16-male-adapter-sm4682a Fairview Microwave SM4682A

8 available

Low PIM N Female (Jack) to 7/16 DIN Male (Plug) Adapter, 1.3 VSWR

Compare

SKU SM4682A

Starting price $64.99

Estimated shipment Today

n-female-7-16-male-adapter-sm4678a Fairview Microwave SM4678A

11 available

Low PIM N Female (Jack) to 7/16 DIN Male (Plug) Adapter, 1.15 VSWR

Compare

SKU SM4678A

Starting price $153.99

Estimated shipment Today
