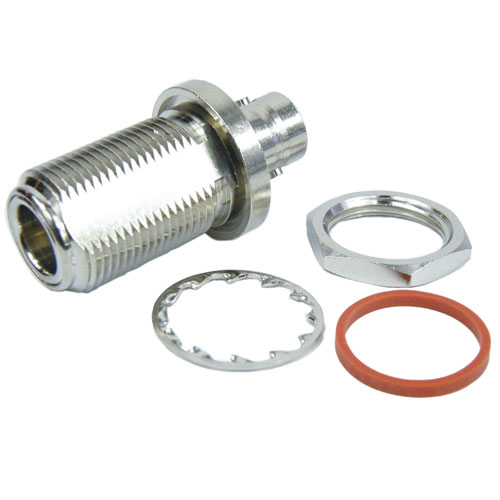

Bulkhead N Female (Jack) to BNC Female (Jack) Adapter, High Temp, 1.2 VSWR

Bulkhead N Female (Jack) to BNC Female (Jack) Adapter, High Temp, 1.2 VSWR

The type N to BNC standard adapter SM3506 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded bulkhead type N to Bayonet none BNC RF ad...

The type N to BNC standard adapter SM3506 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded bulkhead type N to Bayonet none BNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.2:1. Our standard RF adapter has a dielectric withstanding voltage of 1,500 Vrms.This bulkhead type N to none BNC adapter is constructed with female gender on side 1 and female gender on side 2. The bulkhead none type N female to BNC female coaxial adapter from Fairview Microwave has a straight body style. This straighttype Nadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3506 adapter has a length of 1.5 inches, a width of 0.53 inches, and a weight of 0.09 lbs.Our between series connection type RF adapter operates at a maximum frequency of 4 GHz. The Fairview Microwave SM3506 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s type N female to BNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build type N and BNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 4 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3506 SM3506 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

BNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

4 GHz

Adapter Body Style

Straight

Connector Mount Method 1

Bulkhead

Connector Mount Method 2

None

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
