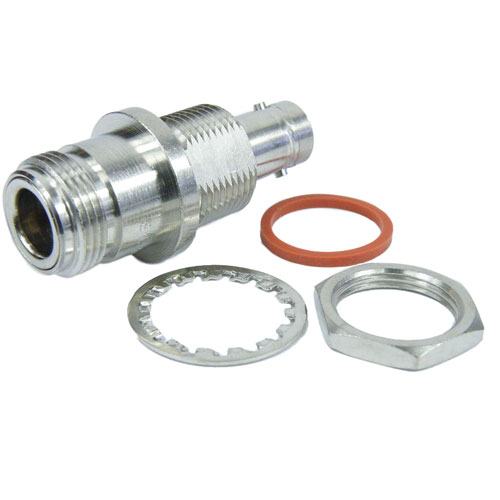

N Female (Jack) to BNC Female (Jack) Bulkhead Adapter, 1.35 VSWR

N Female (Jack) to BNC Female (Jack) Bulkhead Adapter, 1.35 VSWR

The type N to BNC standard adapter SM3505 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none type N to Bayonet bulkhead BNC RF ad...

The type N to BNC standard adapter SM3505 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none type N to Bayonet bulkhead BNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.35:1.This none type N to bulkhead BNC adapter is constructed with female gender on side 1 and female gender on side 2. The none none type N female to BNC female coaxial adapter from Fairview Microwave has a straight body style. This straighttype Nadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM3505 adapter has a length of 1.75 inches, a width of 3.95 inches, and a weight of 0.11 lbs.Our between series connection type RF adapter operates at a maximum frequency of 4 GHz. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s type N female to BNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build type N and BNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 4 GHz radio frequency adapter as per your requirements.

Expand

SKU SM3505 SM3505 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

BNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

4 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Mount Method 2

Bulkhead

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

n-male-bnc-female-adapter-sm3510 Fairview Microwave SM3510

Call us

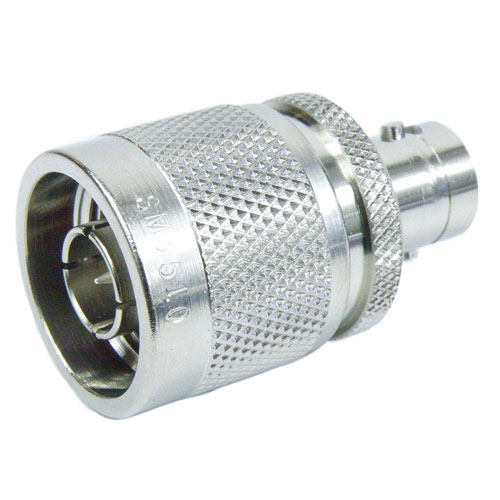

N Male (Plug) to BNC Female (Jack) Adapter, Nickel Plated Brass Body, 1.2 VSWR

Compare

SKU SM3510

Starting price $52.99

Estimated shipment Call Us

n-female-bnc-male-adapter-sm3515 Fairview Microwave SM3515

Call us

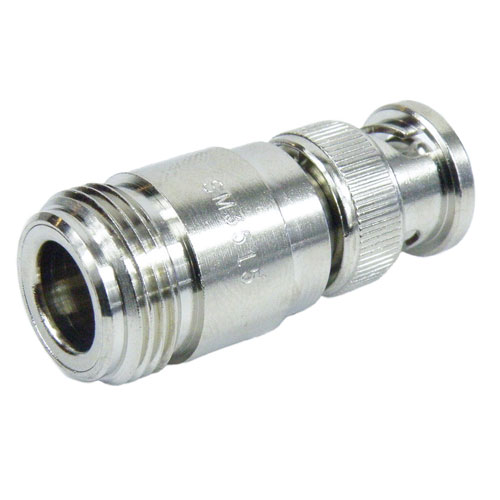

N Female (Jack) to BNC Male (Plug) Adapter, Nickel Plated Brass Body, 1.25 VSWR

Compare

SKU SM3515

Starting price $27.59

Estimated shipment Call Us

ra-n-female-bnc-male-adapter-sm3519 Fairview Microwave SM3519

Call us

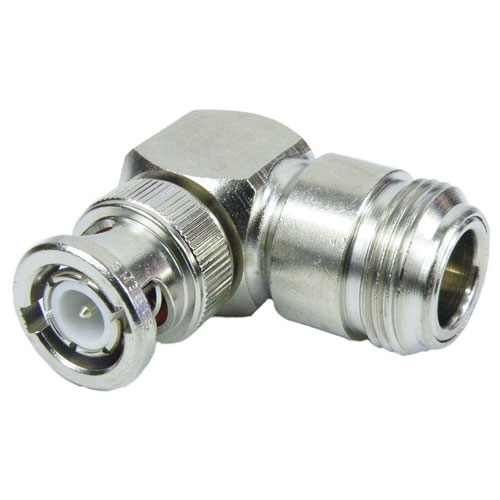

RA N Female (Jack) to BNC Male (plug) Adapter, 1.35 VSWR
