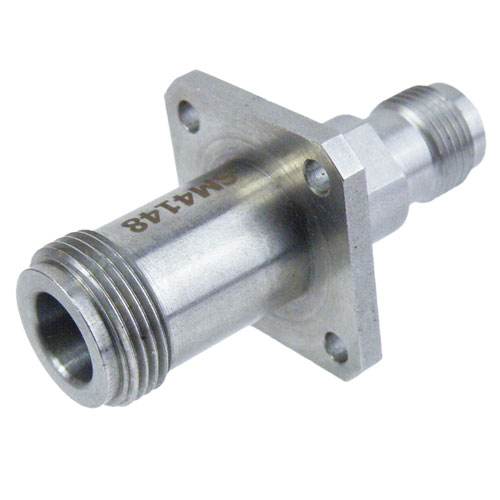

4 Hole Flange N Female (Jack) to TNC Female (Jack) Adapter, Passivated Stainless Steel Body, 1.3 VSWR

4 Hole Flange N Female (Jack) to TNC Female (Jack) Adapter, Passivated Stainless Steel Body, 1.3 VSWR

Name: 4 Hole Flange N Female (Jack) to TNC Female (Jack) Adapter, Passivated Stainless Steel Body, 1.3 VSWR
Brand: Fairview Microwave, Inc.
SKU: SM4148
Price: 115.99 USD
Availability: OutOfStock

The type N to TNC standard adapter SM4148 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded 4 hole flange type N to Threaded none TNC...

The type N to TNC standard adapter SM4148 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded 4 hole flange type N to Threaded none TNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.3:1.This 4 hole flange type N to none TNC adapter is constructed with female gender on side 1 and female gender on side 2. The 4 hole flange none type N female to TNC female coaxial adapter from Fairview Microwave has a straight body style. This straighttype Nadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM4148 adapter has a length of 1.89 inches, a width of 1 inches, and a weight of 0.1 lbs.Our between series connection type RF adapter operates at a maximum frequency of 18 GHz. This type N female to TNC female radio frequency adapter has a passivated stainless steel connector body. The Fairview Microwave SM4148 coaxial RF adapter operates at temperatures ranging from -55 to 100 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s type N female to TNC female adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build type N and TNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 18 GHz radio frequency adapter as per your requirements.

Expand

SKU SM4148 SM4148 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

TNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

18 GHz

Adapter Body Style

Straight

Connector Mount Method 1

4 Hole Flange

Connector Body Material 1

Passivated Stainless Steel

Connector Mount Method 2

None

Connector Body Material 2

Passivated Stainless Steel

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

n-female-tnc-female-4-hole-flange-adapter-sm4146 Fairview Microwave SM4146

46 available

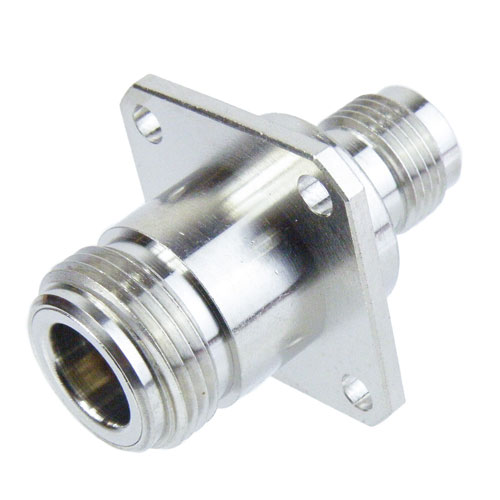

N Female (Jack) to TNC Female (Jack) 4 Hole Flange Adapter, Nickel Plated Brass Body, 1.35 VSWR

Compare

SKU SM4146

Starting price $121.99

Estimated shipment Today

4-hole-flange-sma-female-n-female-adapter-sm4224 Fairview Microwave SM4224

Call us

4 Hole Flange SMA Female (Jack) to N Female (Jack) Adapter, Passivated Stainless Steel Body, 1.25 VSWR

Compare

SKU SM4224

Starting price $151.99

Estimated shipment Call Us

n-male-tnc-female-adapter-fmad1247 Fairview Microwave FMAD1247

55 available

N Male to TNC Female Adapter with Passivated Stainless Steel Body

Compare

SKU FMAD1247

Starting price $151.99

Estimated shipment Today

tnc-female-tnc-female-4-hole-flange-adapter-fmad1242 Fairview Microwave FMAD1242

189 available

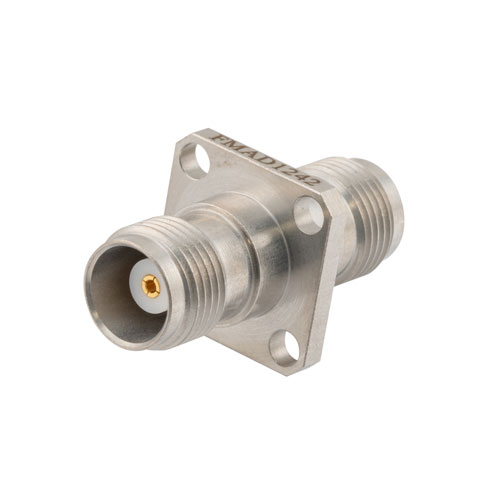

TNC Female (Jack) to TNC Female (Jack) 4 Hole Flange Adapter, Passivated Stainless Steel Body, 1.2 VSWR
